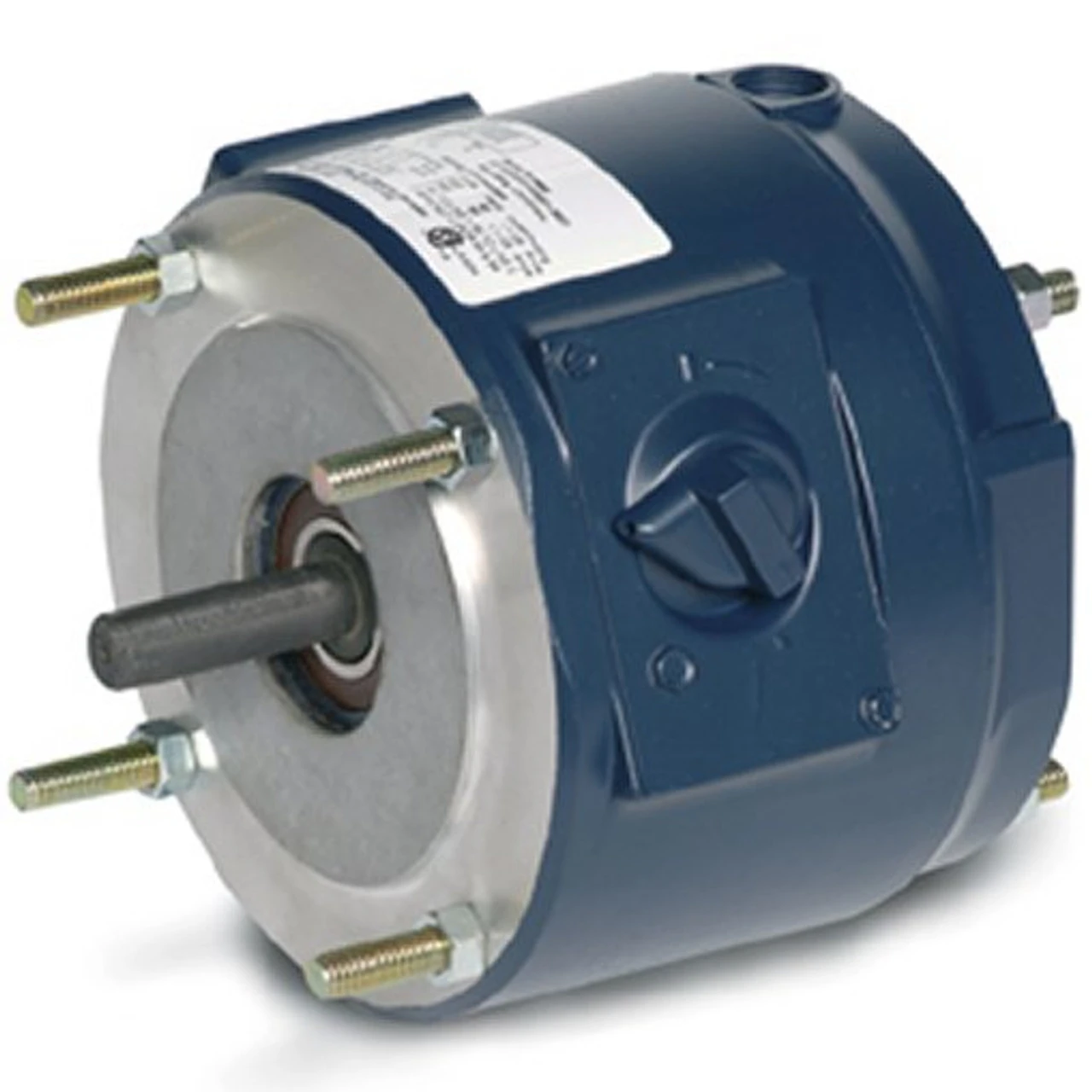

105676107QF Stearns Brake Assembly

• Series 56700 Disc Brakes, NEMA 2, 208-230/460, 3-Phase
• Solenoid Actuated Spring-Set Brakes (Manually-Adjusted)
• 25 Foot Pound Torque, 7/8″ Hub Bore
• Horizontal Mount, Class B Coil Insulation; Double C-Face brake
• Lead time to ship = 1 week approximately

Stearns Brakes Electric Motor Brake. Double C-Face brake 56,700 Series mounts between C-Face motor and reducer. Maximum Speed: 5000 RPM Horizontal 3600 RPM Vertical. Do not apply overhung load to brake output shaft. If you do not see your brake listed, call us or send an email and we will be glad to assist you. There are over 100,000 brake combinations, we have only listed a few basic brakes. Brakes are built to order at the factory, lead time to ship is normally one week for this brake. Adjustable Torque, Manual Wear Adjustment, Side Manual Release Lever with, automatic Reset, Class B Coil Insulation, Spring-Set Electrically Released, Lead Wire Length: 24 inches, Maximum Speed: Horizontal 5000 RPM, Enclosure: IP23 (formerly referred to by, Stearns Brakes as NEMA 2), Stamped Steel Housing. Certified: CSA File LR-6254. One year manufacture warranty for manufacturing defects. 25% restocking fee on brakes returned as ordered in error or incorrectly ordered.
