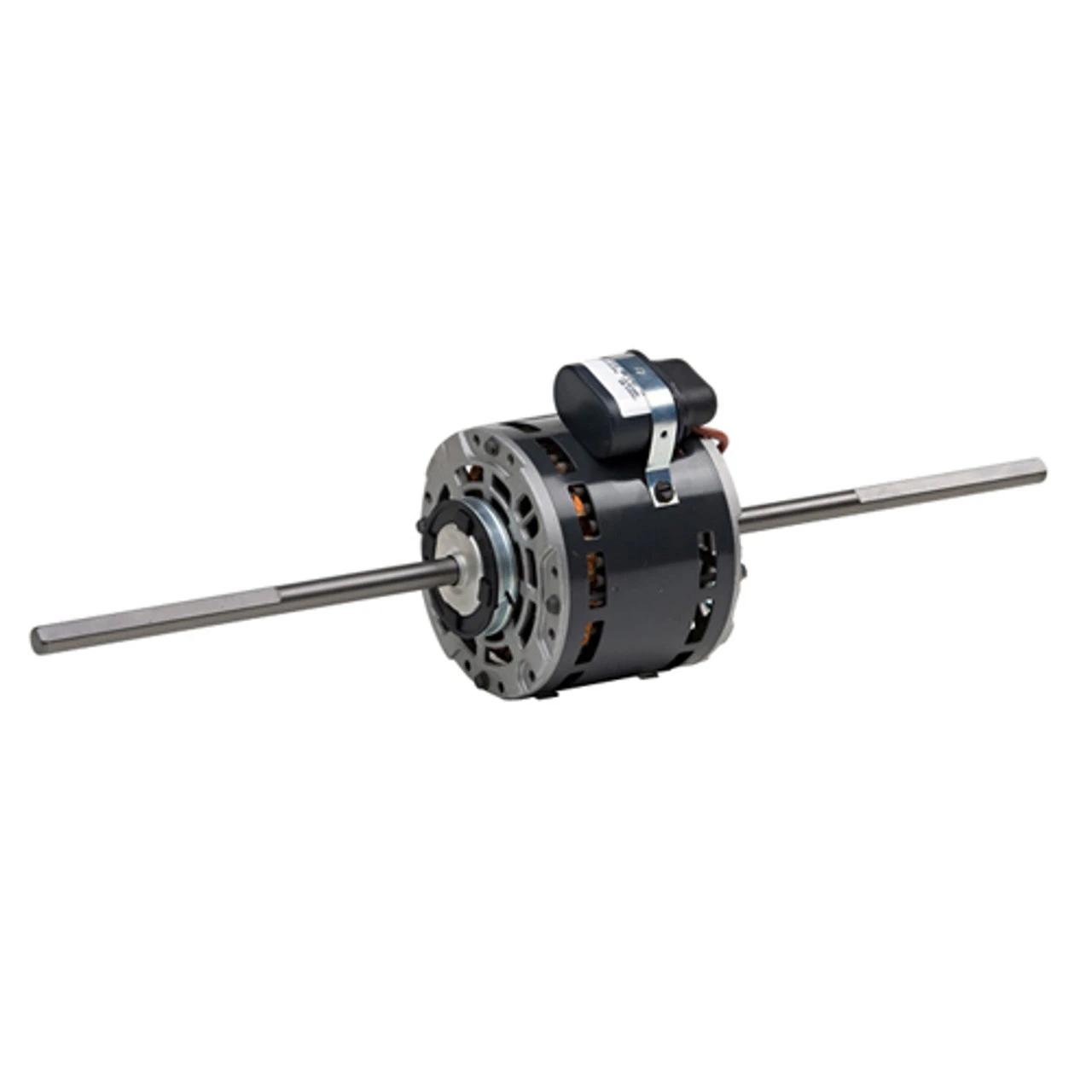

1247 Nidec 1/3 Hp 1075 RPM 230V 5.6" Dia. (Base) 3-Speed OAO Fan Motor

1247 Nidec 1/3 Hp 1075 RPM 230V 5.6" Dia. (Base) 3-Speed OAO Fan Motor - Image 2

1247 Nidec 1/3 Hp 1075 RPM 230V 5.6″ Dia. (Base) 3-Speed OAO Fan Motor

Original price was: $246.40.Current price is: $98.99.

SKU: ZWXLY 1698668110 Categories: Dual Shaft Motors, HVAC Motors & Draft Inducers Tag: Nidec

Have the best deals
The quality solution for all your needs.
Excellent customer service online in a timely manner
The best quality products, always.

Description
Reviews (0)

1/3 hp 1075 RPM, 3 speed 1.2 amps 230V Volts 60 Hz PSC Motor
5.6″ Dia. Frame, Rolled Steel, Flat Shaft 9″ x 1/2″ x 9″
Service Factor = 1, Overload Protection: Auto
Resilient Base Mount, Sleeve Bearings, Class B Insulation, CCW Lead End
1 Year Manufacture Warranty

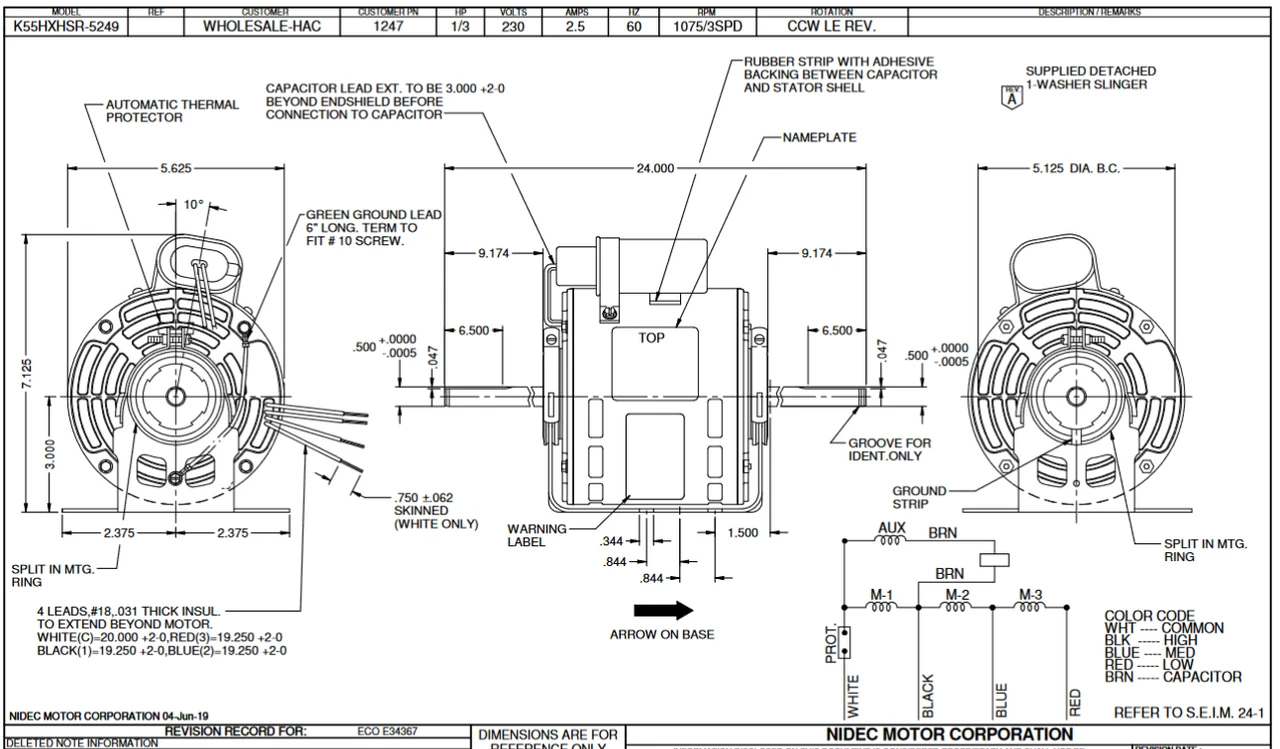

Direct Drive Fan Motor for central HVAC systems. Wiring diagram on motor name plate. OAO = Open Air-Over, KD55HSR5249R11B
