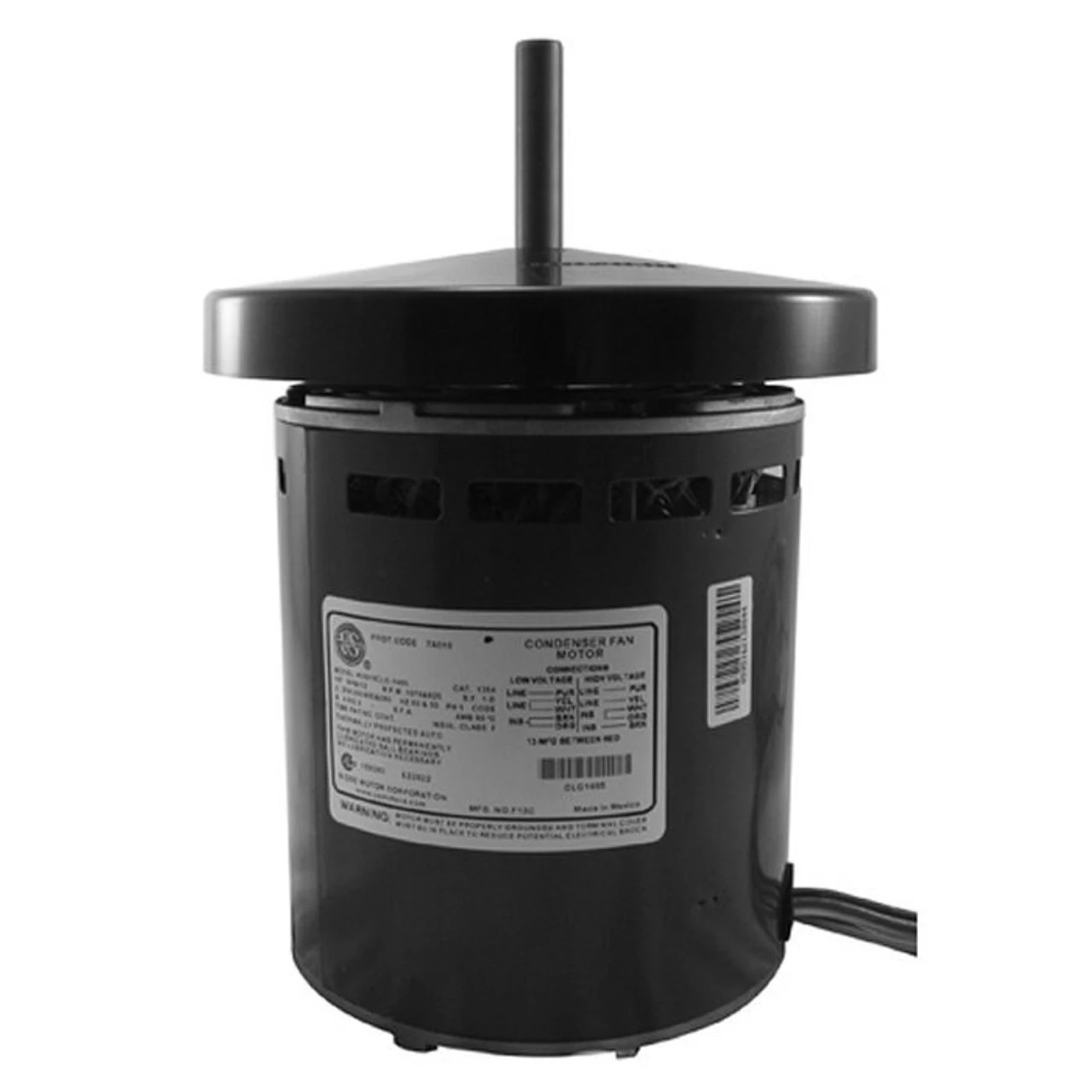

1254 Nidec | 3/4 Hp 1075 RPM 1-Speed 208-230, 380, 460V; 5.6" Condenser Motor

1254 Nidec | 3/4 Hp 1075 RPM 1-Speed 208-230, 380, 460V; 5.6" Condenser Motor - Image 2

1254 Nidec | 3/4 Hp 1075 RPM 1-Speed 208-230, 380, 460V; 5.6″ Condenser Motor

Original price was: $382.00.Current price is: $97.99.

SKU: ZWXLY 1698667204 Categories: Air Condenser Fan Motor, HVAC Motors & Draft Inducers Tag: Nidec

Have the best deals
The quality solution for all your needs.
Excellent customer service online in a timely manner
The best quality products, always.

Description
Reviews (0)

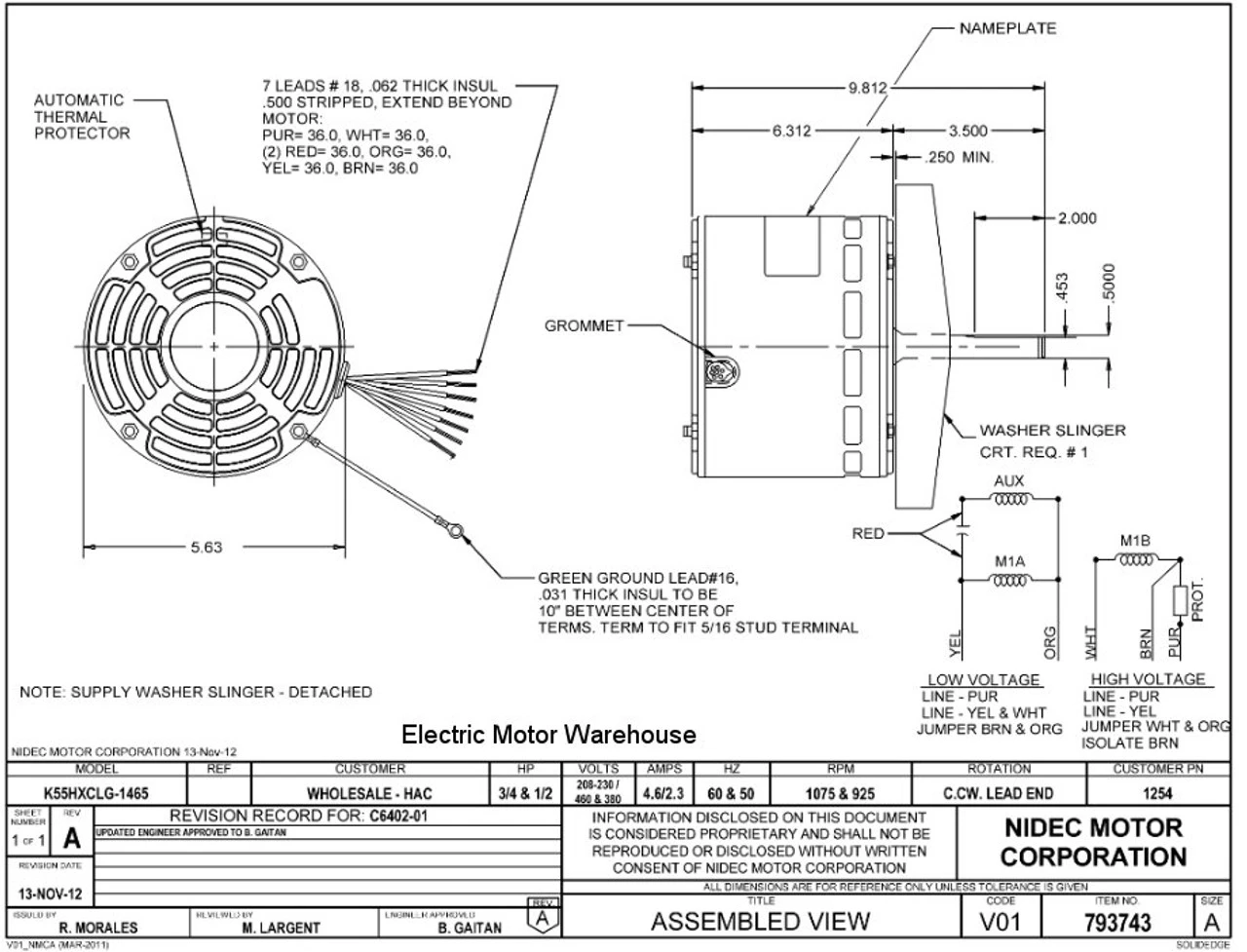

3/4 hp 1075 RPM 1-Speed 208-230, 460V 50/60hz., 4.6/2.3 amps
Shaft 1/2″ x 3.5″
Rotation CW shaft end
5.6″ Diameter
Motor case length 6.312″
Ball bearings
Washer Slinger covers one end of motor
Includes 15 MFD capacitor
1 Year mfg warranty

Permanent Split Capacitor Motor. Automatic Overload Protection. Continuous Duty; Open Enclosure air over; Enclosed End Sheild at Shaft End; Mount Vertical Shaft Up only; Class B Insulation; 40C Ambient Temperature; 36″ Leads. Suggested after market replacement for Quantum Precision condenser fan motor K55HXWDS-457, K55HXWDS-117, 102002900, DS0177011B, K055CLG1465011B.
