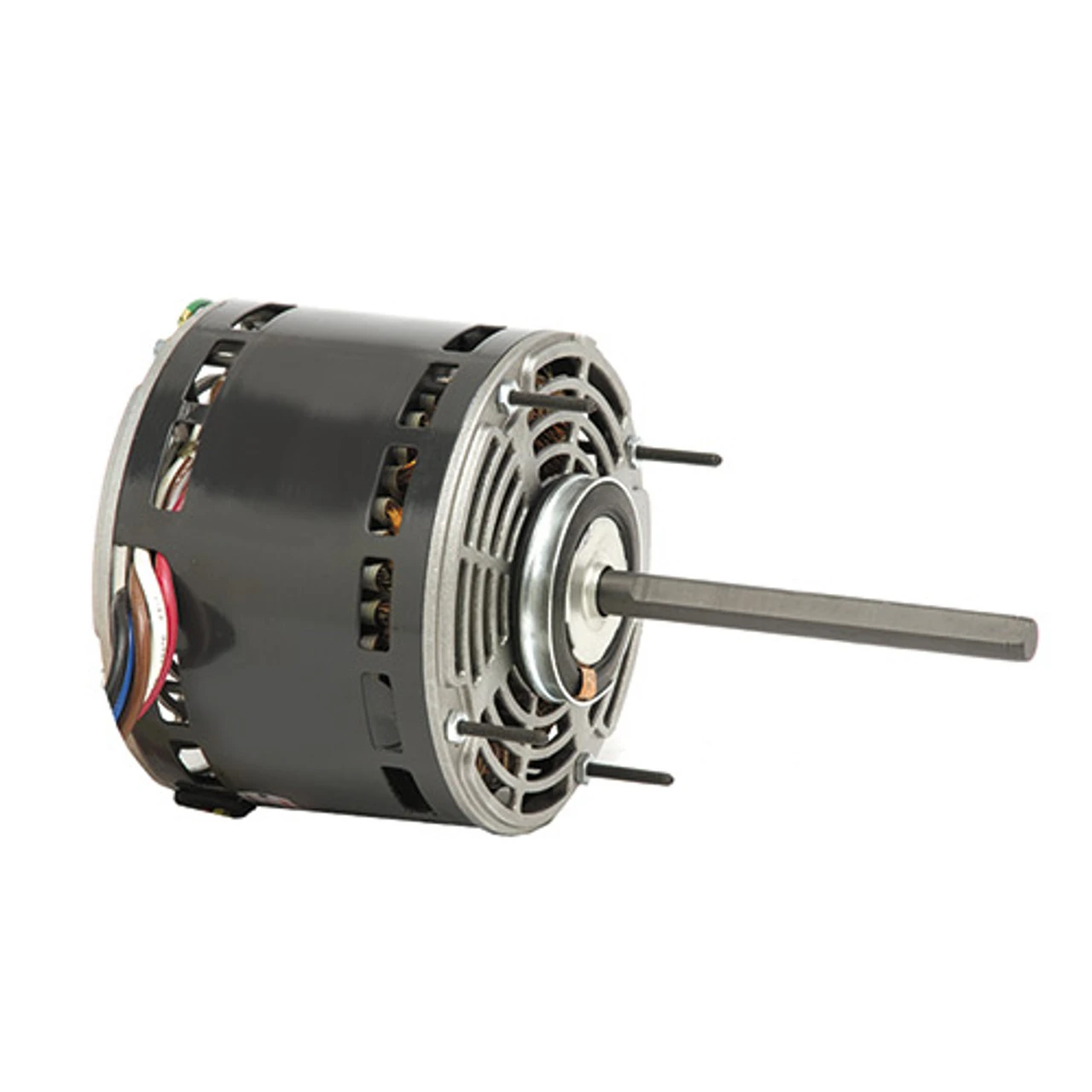

1697 Nidec 3/4 Hp 1625 RPM 208-230V 5.6" Dia. (No Base) 3-Speed OAO Fan Motor

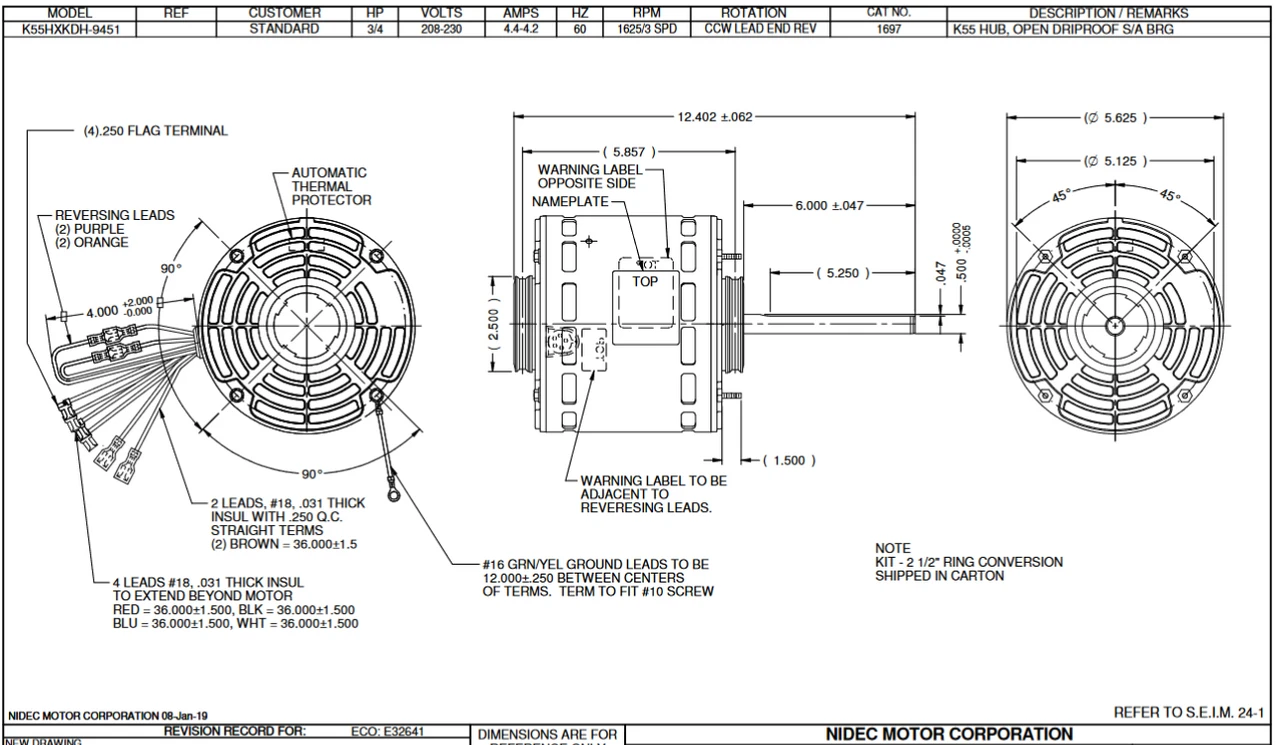

1697 Nidec 3/4 Hp 1625 RPM 208-230V 5.6" Dia. (No Base) 3-Speed OAO Fan Motor - Image 2

1697 Nidec 3/4 Hp 1625 RPM 208-230V 5.6″ Dia. (No Base) 3-Speed OAO Fan Motor

Original price was: $280.50.Current price is: $99.99.

SKU: ZWXLY 1698669401 Categories: Furnace Motors, HVAC Motors & Draft Inducers Tag: Nidec

Have the best deals
The quality solution for all your needs.
Excellent customer service online in a timely manner
The best quality products, always.

Description
Reviews (0)

3/4 hp 1625 RPM (3 speed), 4.4-4.2 amps 208-230V Volts 60 Hz PSC Motor
5.6″ Dia. Frame, Rolled Steel, Flat Shaft 1/2″ Diameter x 6″
Service Factor = 1, Overload Protection: Auto
Hub Mount, Sleeve Bearings, Class B Insulation, Rev
1 Year Manufacture Warranty

Direct Drive Fan Motor for central HVAC systems. Wiring diagram on motor name plate. OAO = Open Air Over, K055KDH9451022B
