175762.00 Leeson | Stearns Brake Kit 3 Ft Lb. 105601111002 115/230V

• 115-208/230 Volts 50/60 hz.
• 3 foot pounds
• Max HP = 1
• 56, 143T, 143TC, 145, 145TC 5/8″ or 7/8″ shaft dia.
• RPM Range 1800
• IP23 Enclosure

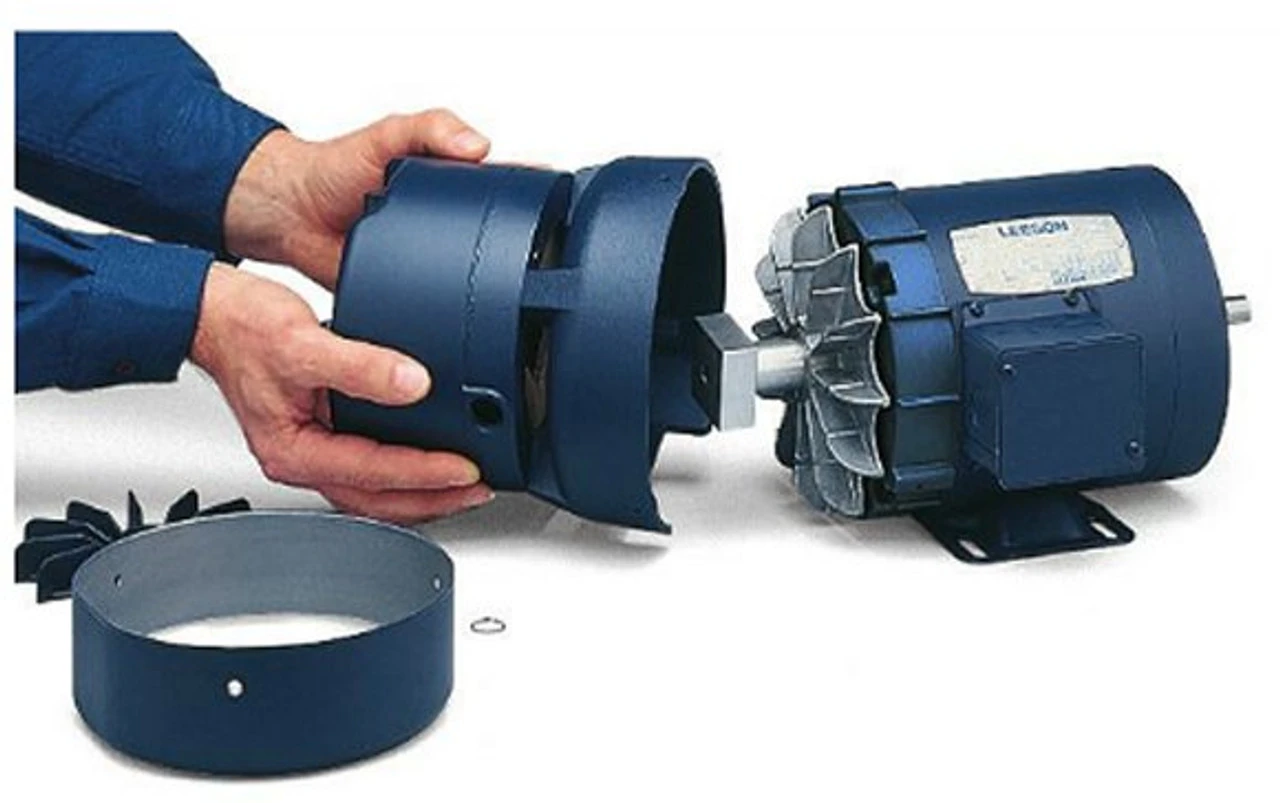

Kit easily installs on back (Rear) of certain Leeson Electric motors to convert to brake-motor use. Kit size is determined by NEMA frame and ft.-lb. of static torque required for the application. Includes mounting hardware.
Note: A start/stop cycle of no more than 1 stop per minute is acceptable for these brakes when used with a motor and reducer.
1-056-011-11-002, 175762.00.
