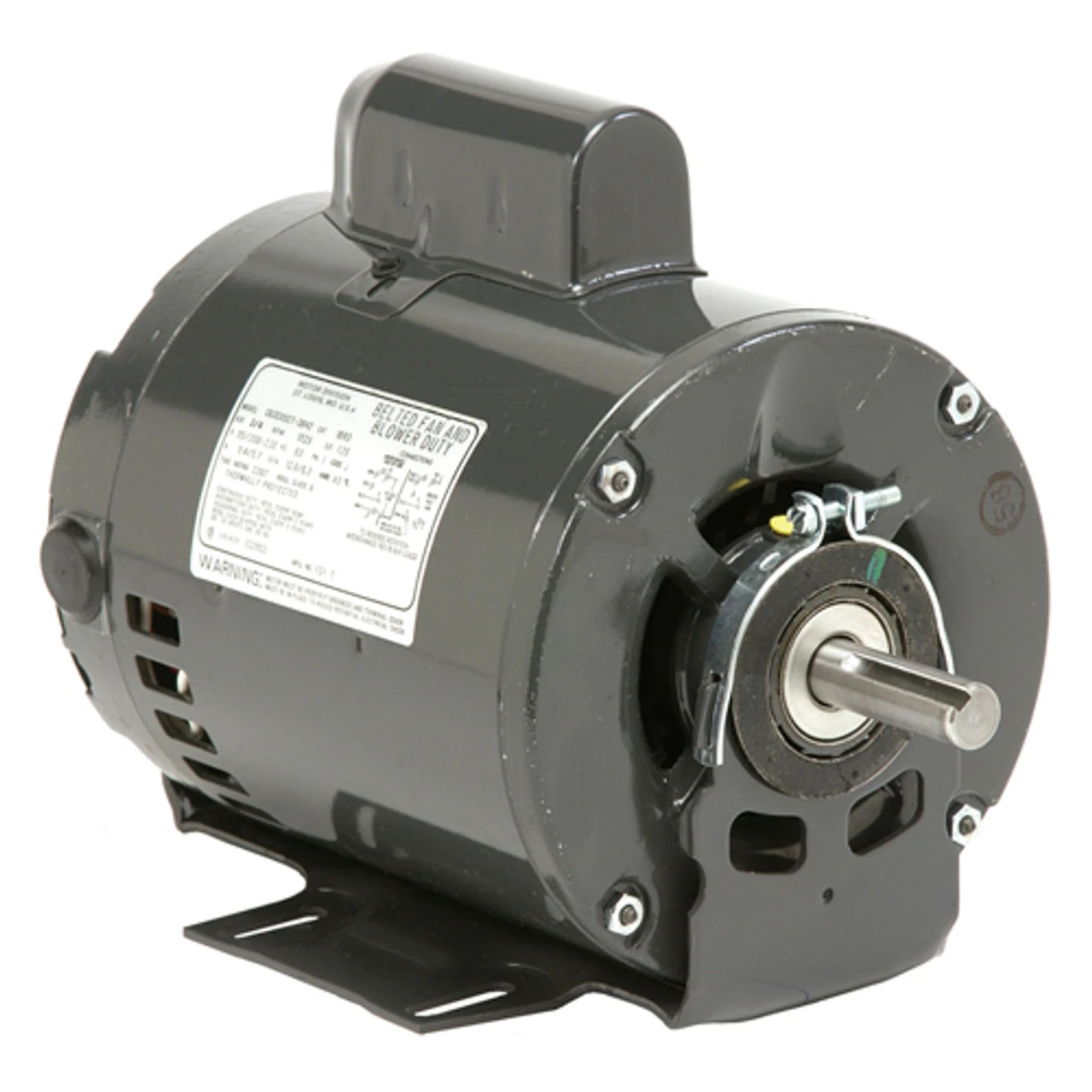

180 Nidec 1/3 Hp 1800 RPM 115/230V 5.6" Dia. (Base) 1-Speed ODP Belt Drive Motor

180 Nidec 1/3 Hp 1800 RPM 115/230V 5.6" Dia. (Base) 1-Speed ODP Belt Drive Motor - Image 2

180 Nidec 1/3 Hp 1800 RPM 115/230V 5.6″ Dia. (Base) 1-Speed ODP Belt Drive Motor

Original price was: $270.70.Current price is: $99.99.

SKU: ZWXLY 1698669452 Categories: Furnace Motors, HVAC Motors & Draft Inducers Tag: Nidec

Have the best deals
The quality solution for all your needs.
Excellent customer service online in a timely manner
The best quality products, always.

Description
Reviews (0)

1/3 hp 1800 RPM (1 speed), 6.0/3.0 amps 115/230V Volts 60 Hz Capacitor Start Motor
5.6″ Dia. Frame, Rolled Steel, Flat Shaft 1/2″ Diameter x 1 1/2″
Service Factor = 1.3, Overload Protection: Auto
Resilient Base Mount, Ball Bearings, Class A Insulation, Rev
1 Year Manufacture Warranty

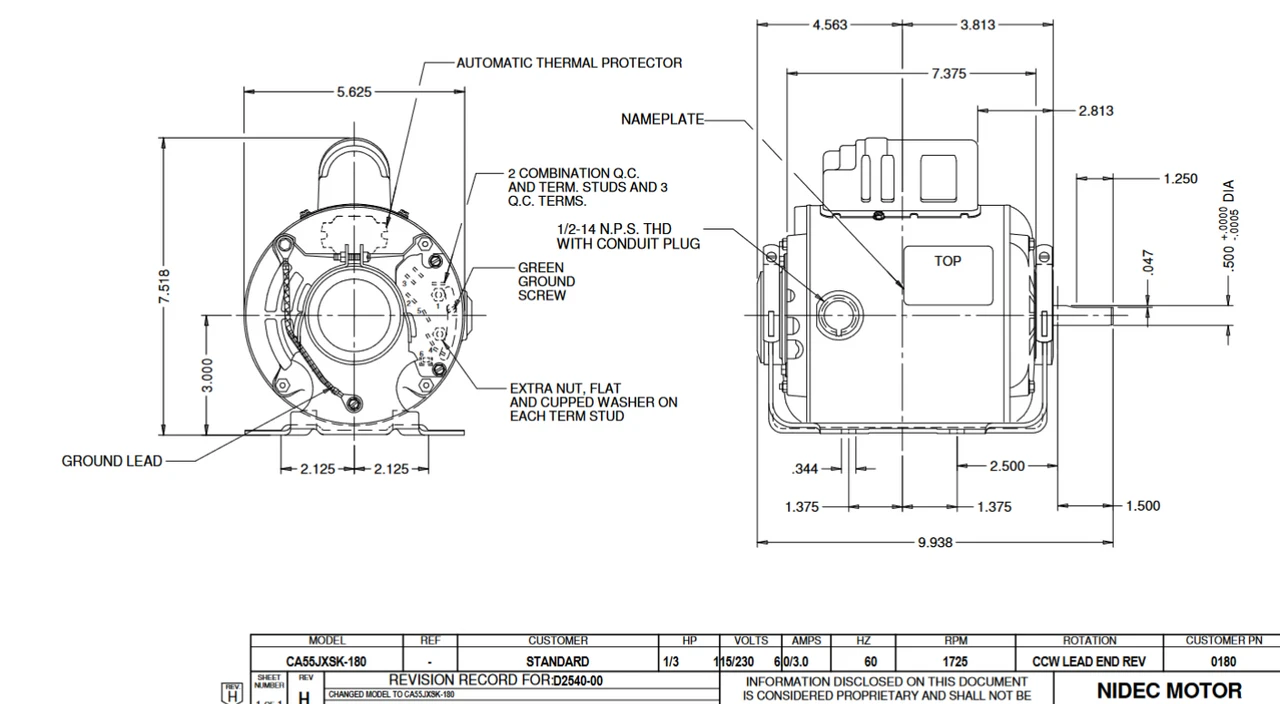

Belt Drive Fan Motor for central HVAC systems. Wiring diagram on motor name plate. ODP = Open Drip-Proof, CA550SK0180742B
