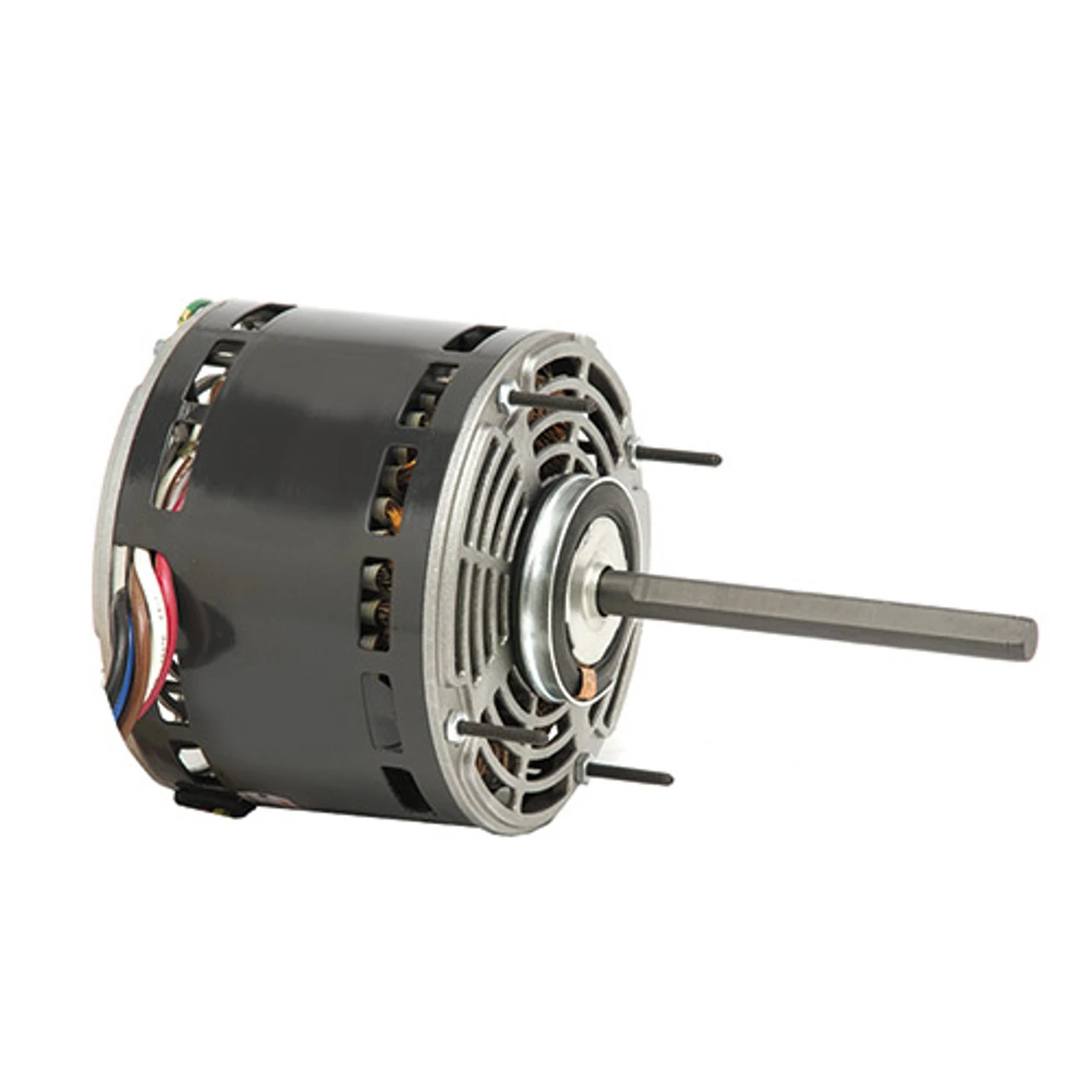

601 Nidec 1/3 Hp 1075 RPM 277V 5.6" Dia. (No Base) 3-Speed OAO Fan Motor

601 Nidec 1/3 Hp 1075 RPM 277V 5.6" Dia. (No Base) 3-Speed OAO Fan Motor - Image 2

601 Nidec 1/3 Hp 1075 RPM 277V 5.6″ Dia. (No Base) 3-Speed OAO Fan Motor

Original price was: $239.80.Current price is: $98.99.

SKU: ZWXLY 1698669481 Categories: Furnace Motors, HVAC Motors & Draft Inducers Tag: Nidec

Have the best deals
The quality solution for all your needs.
Excellent customer service online in a timely manner
The best quality products, always.

Description
Reviews (0)

1/3 hp 1075 RPM (3 speed), 2.2 amps 277V Volts 60 Hz PSC Motor
5.6″ Dia. Frame, Rolled Steel, Flat Shaft 1/2″ Diameter x 6″
Service Factor = 1, Overload Protection: Auto
Hub Mount, Sleeve Bearings, Class B Insulation, Rev
1 Year Manufacture Warranty

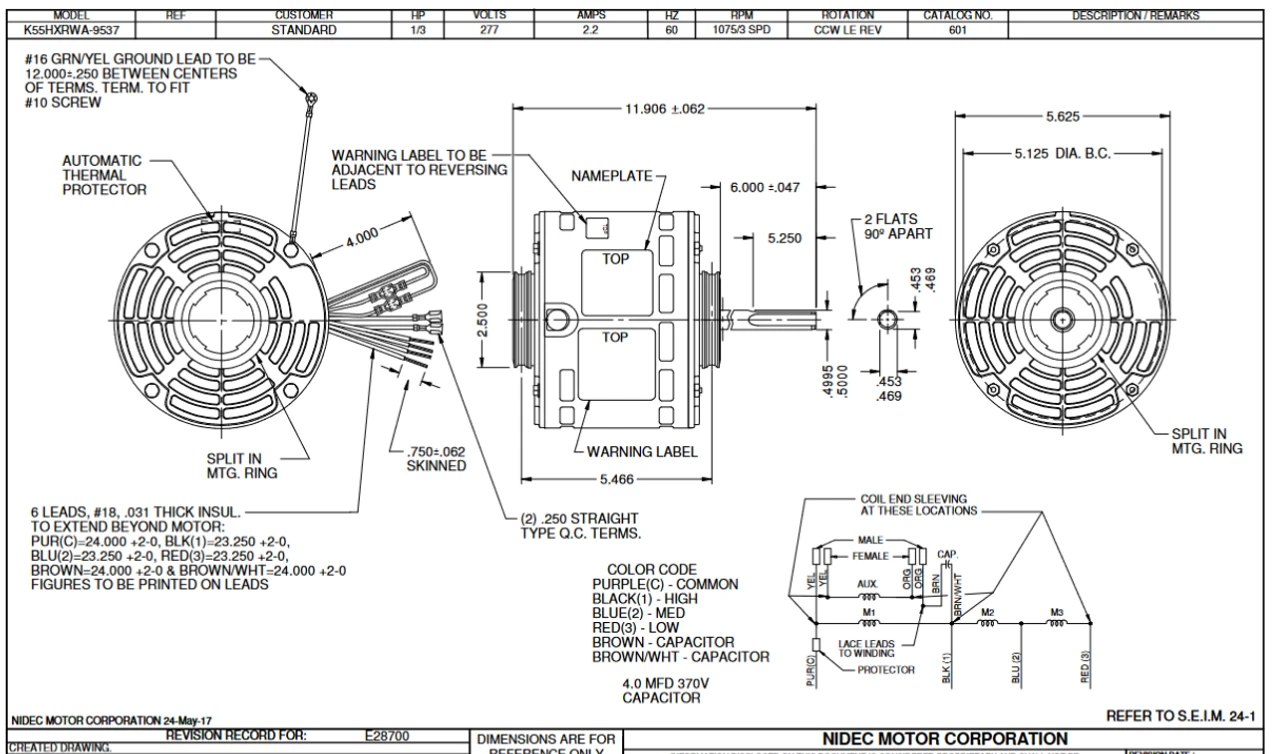

Direct Drive Fan Motor for central HVAC systems. Wiring diagram on motor name plate. OAO = Open Air Over, K055RWA9537022B
