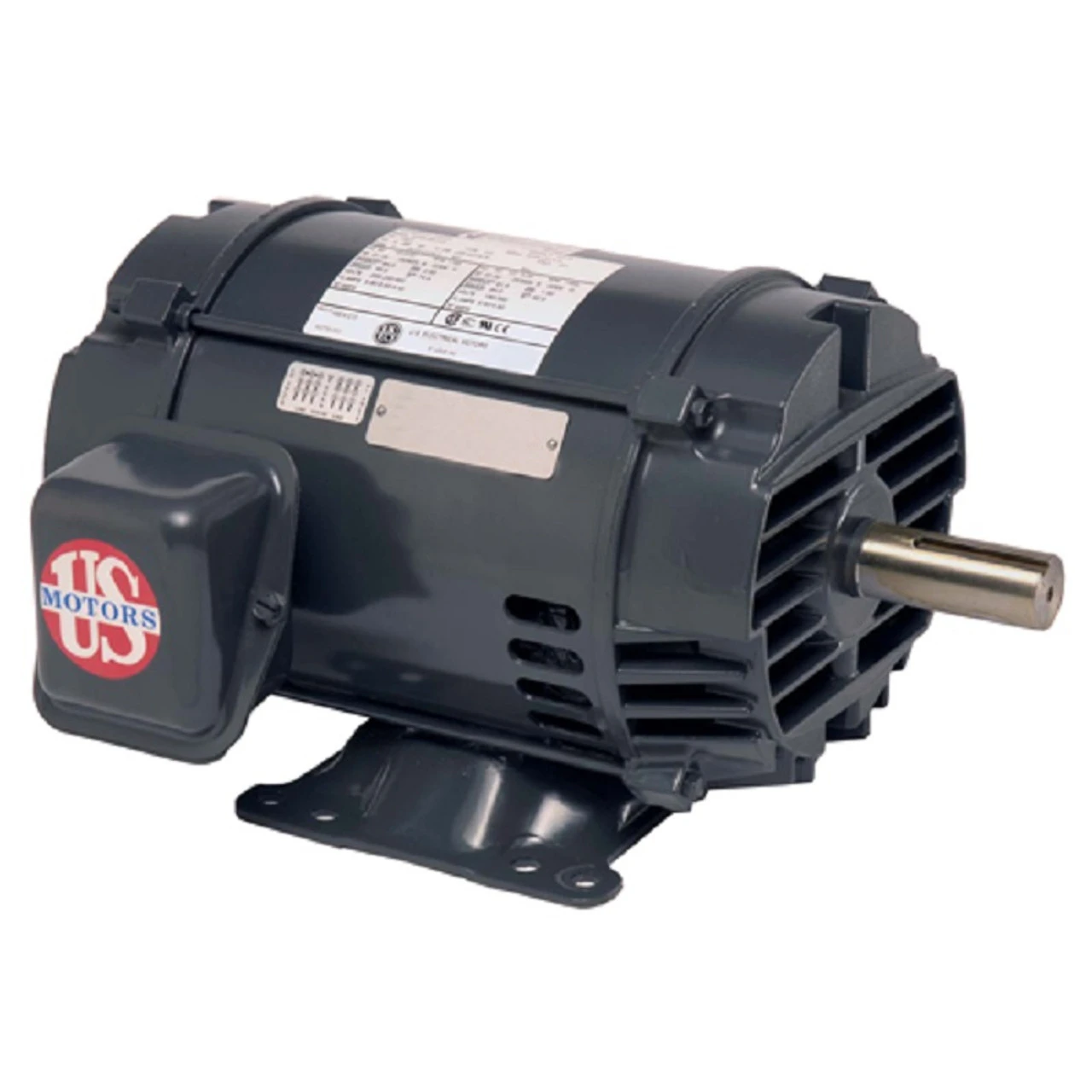

D20P2D Nidec | 20 Hp 1800 RPM 256T Frame 208-230/460V ODP Electric Motor Nidec
Original price was: $346.00.$97.99Current price is: $97.99.
- Have the best deals
- The quality solution for all your needs.
- Excellent customer service online in a timely manner
- The best quality products, always.
- 20 hp 1800 RPM, 47.0/23.6 amps 208-230/460V, 50/60hz. Three Phase

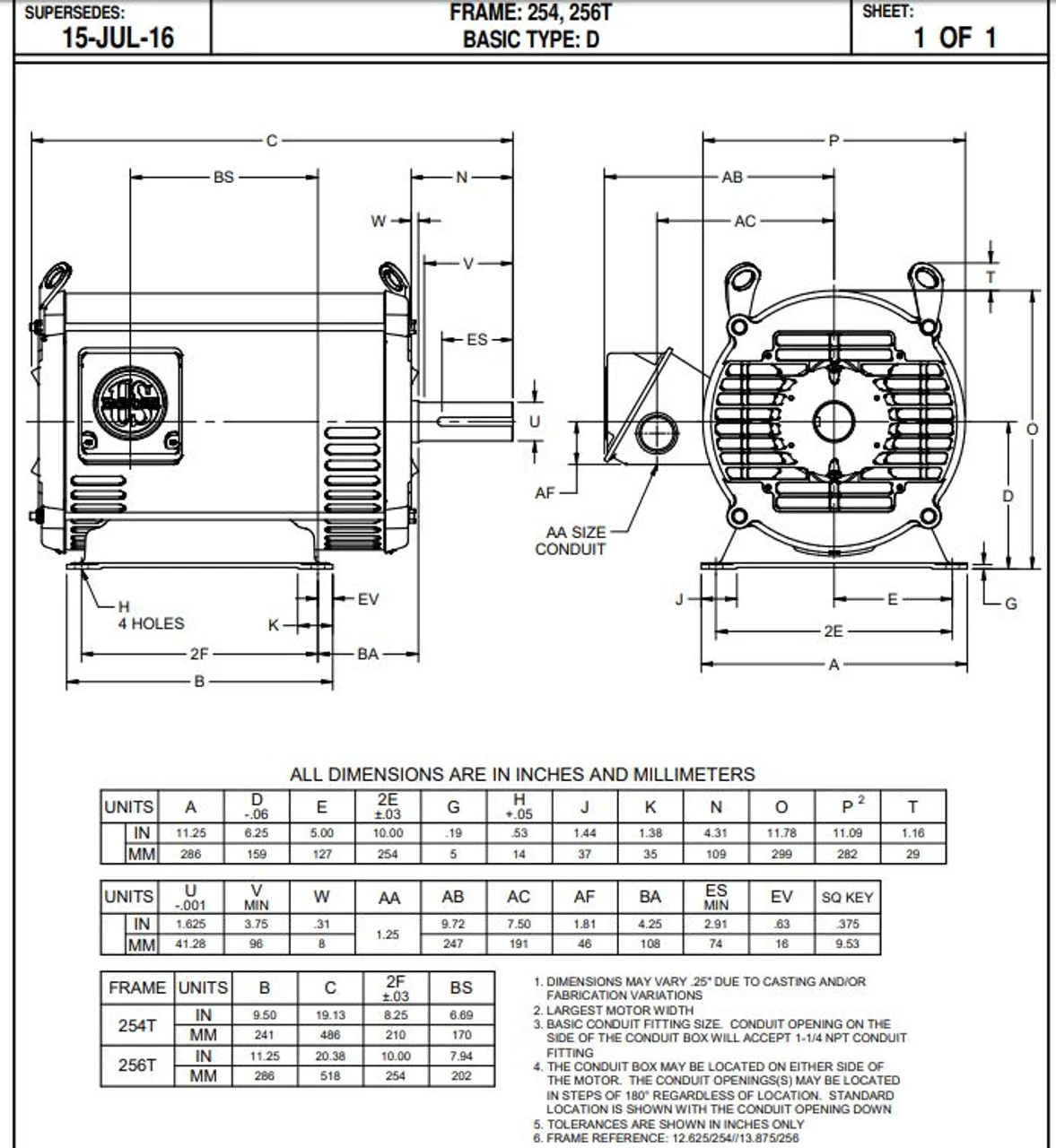

- NEMA 256T Frame Keyed Shaft 1-5/8″ Diameter x 4″
- ODP; Service Factor: 1.15, Overload protection = None
- Reversible, Rigid Base Mount, Ball Bearings, Class F Insulation
- “C” Dimension 23.2″
- 1 Year Manufacture Warranty
General purpose motor can be used for many applications requiring a three phase electric motor. Continuous Duty. Premium efficient. 40C Ambient Temp. Wiring diagram on motor name plate. ODP = Open Drip Proof
Model FP91, Dayton 263X28
