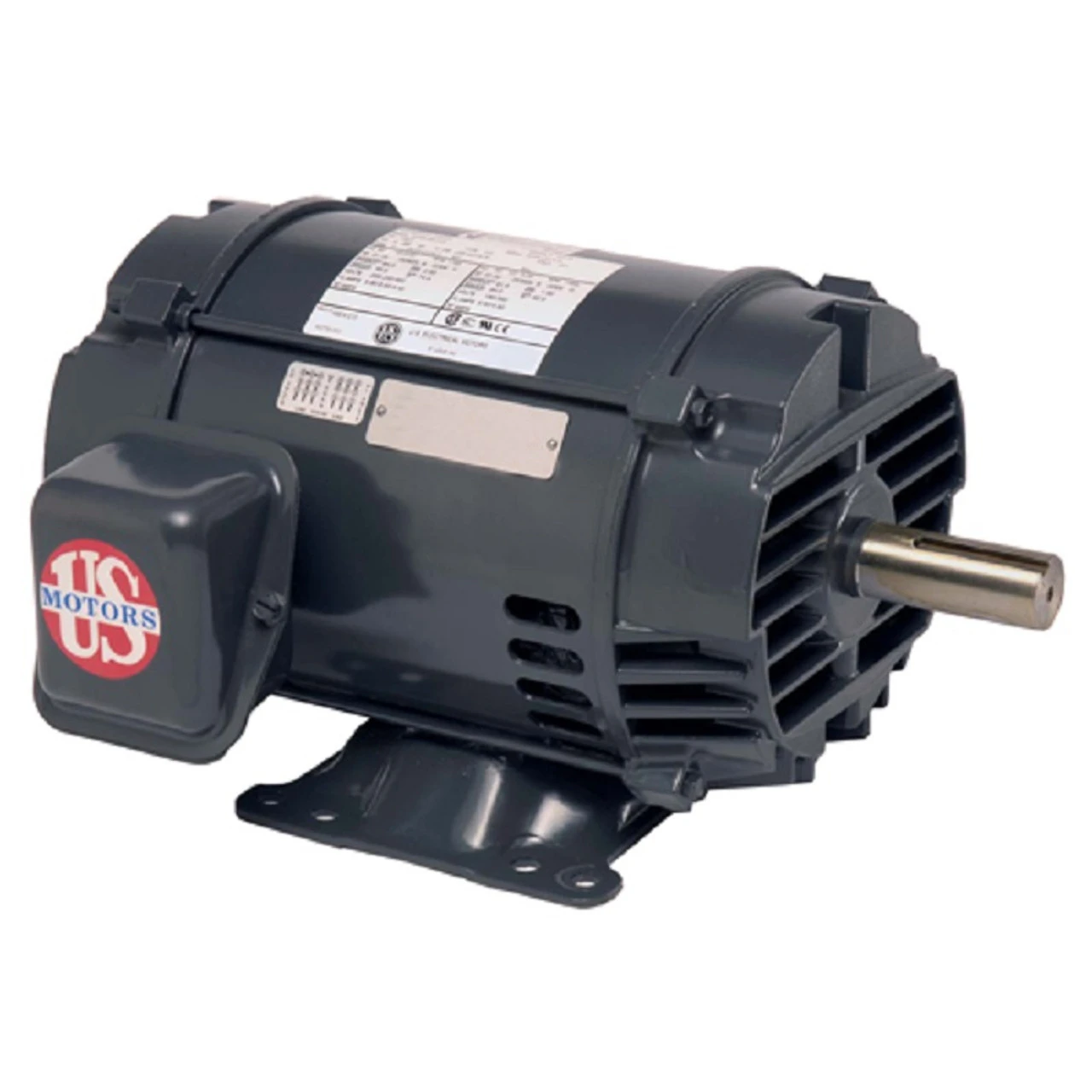

D20P3D Nidec | 20 Hp 1200 RPM 286T Frame 208-230/460V ODP Electric Motor Nidec
Original price was: $331.00.$97.99Current price is: $97.99.
- Have the best deals
- The quality solution for all your needs.
- Excellent customer service online in a timely manner
- The best quality products, always.
- 20 hp 1200 RPM, 48.0/24.0 amps 208-230/460V, 50/60hz. Three Phase

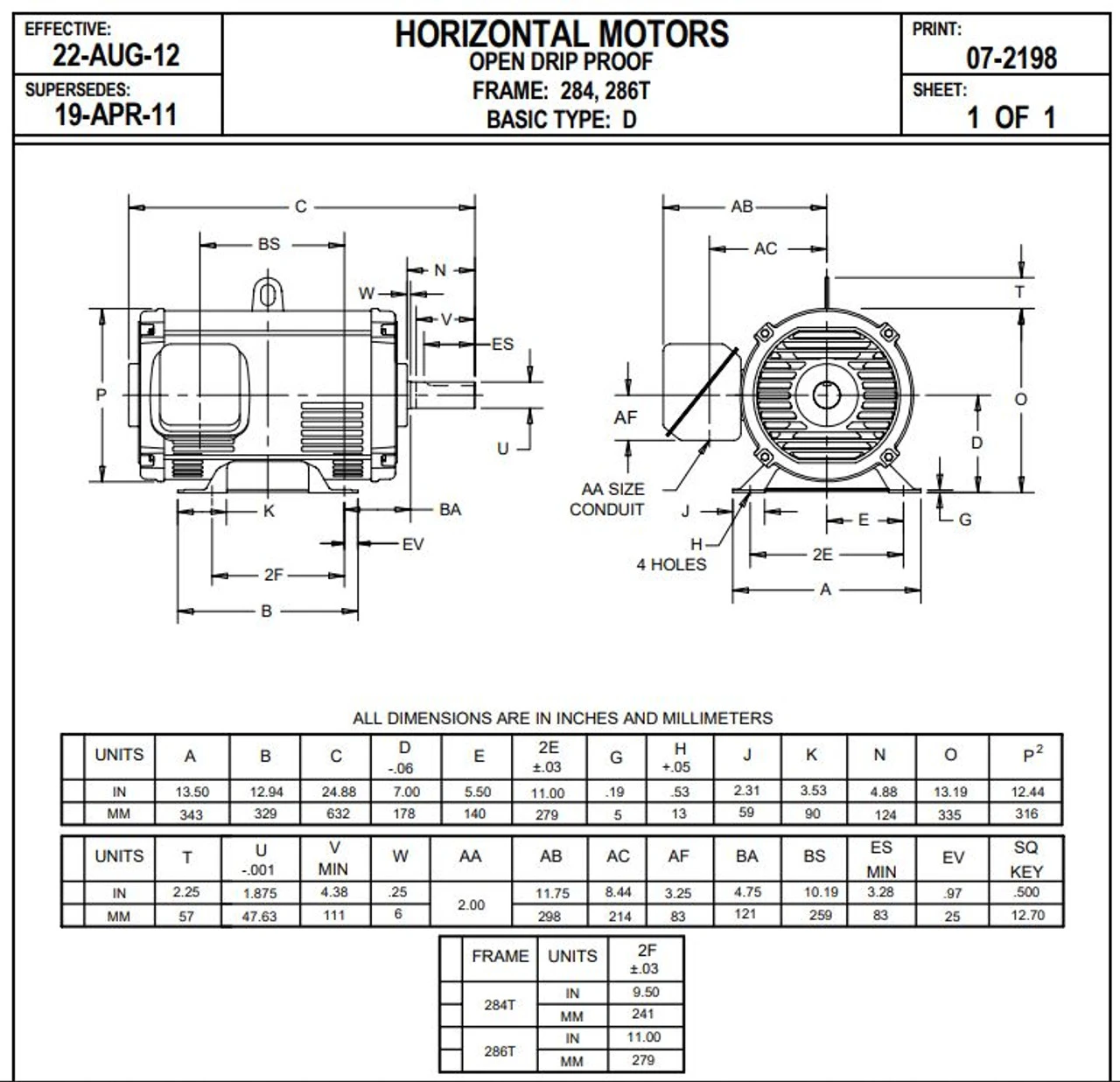

- NEMA 286T Frame Keyed Shaft 1 7/8″ Diameter x 4 5/8″
- ODP; Service Factor: 1.15, Overload protection = None
- Reversible, Rigid Base Mount, Ball Bearings, Class F Insulation
- “C” Dimension 24.9″
- 1 Year Manufacture Warranty
General purpose motor can be used for many applications requiring a three phase electric motor. Continuous Duty. Premium efficient. 40C Ambient Temp. Wiring diagram on motor name plate. ODP = Open Drip Proof
Model DP92
