Fasco 50769-D500 Fasco Blower 115V 2-Speed

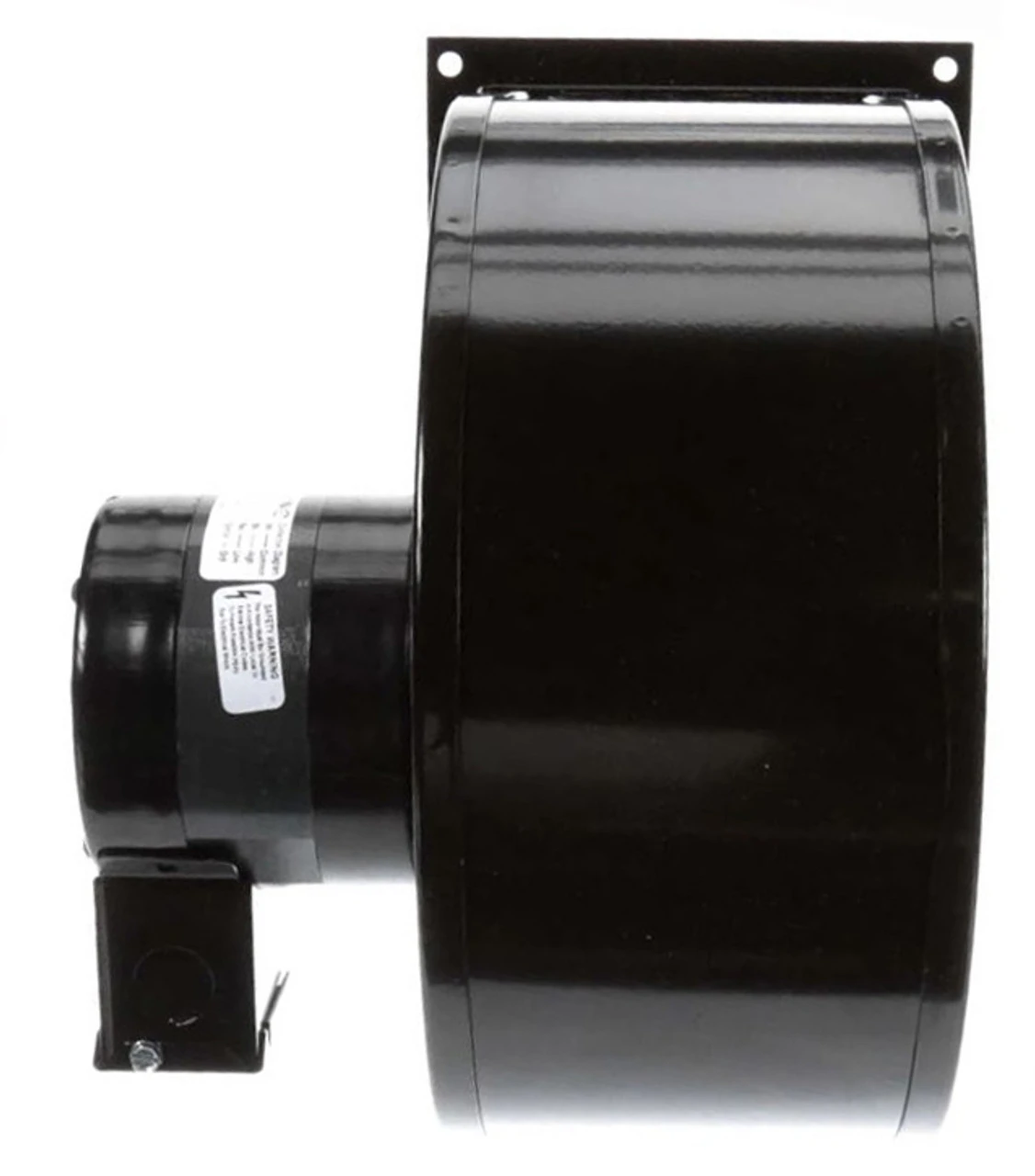

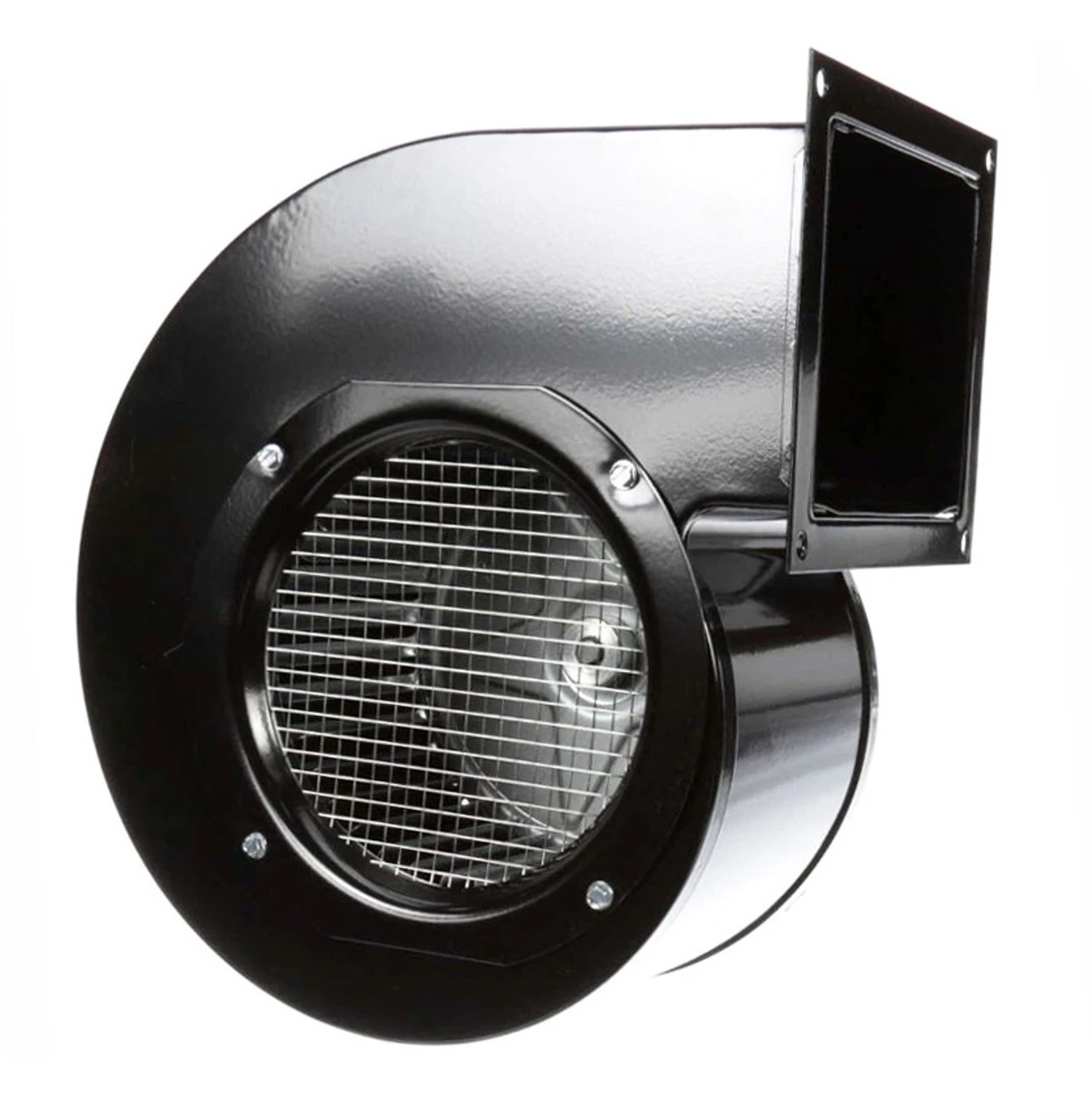

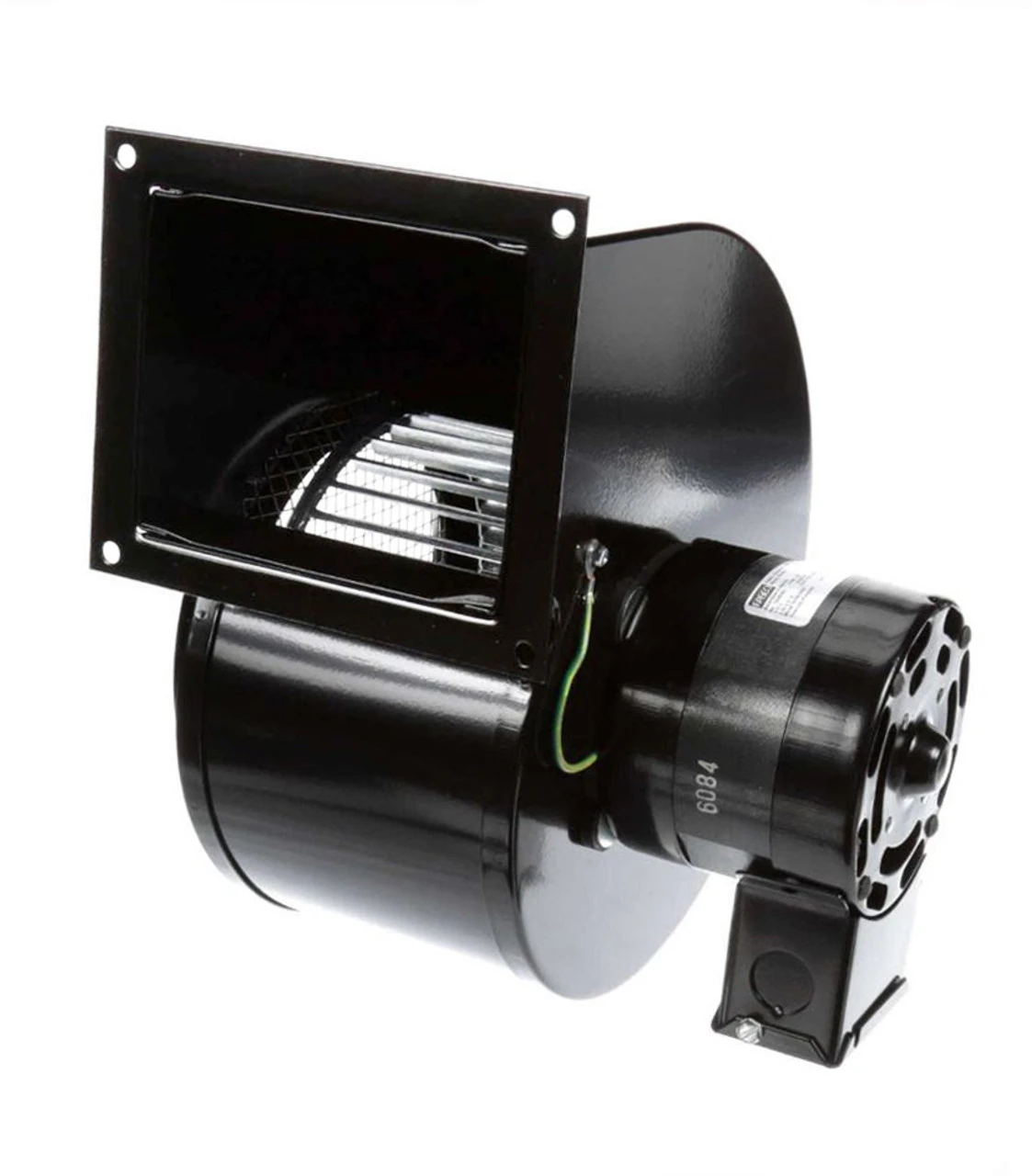

FASCO 50769-D500 Rectangular Outlet Shaded Pole Centrifugal Blower

• 1/10 hp, 3.55-2.21 amps, 115 Volts 50/60hz
• 1525/1165 RPM – High and Low Speed
• Shaded Pole Blower
• Name Plate CFM 500
• Sleeve Bearings
• Conduit Box
• Not recommended for speed control
• No power cord, or hi/low speed switch included
• 1 Year Manufacture Warranty

Suggested replacement reference for:
Fasco 7008-6084, 7008-6162
George Mayer 7008-6357
Mt Vernon Fireplace 7008-6059, 7008-6319, 7108-6084, 7008-6084, 7008-6133, 7008-6033,7008-6874 (use on hi speed)
Dayton 4C444, 1TDR7, 9C404

White = Common
Black = High
Red = Low
Green = Ground
