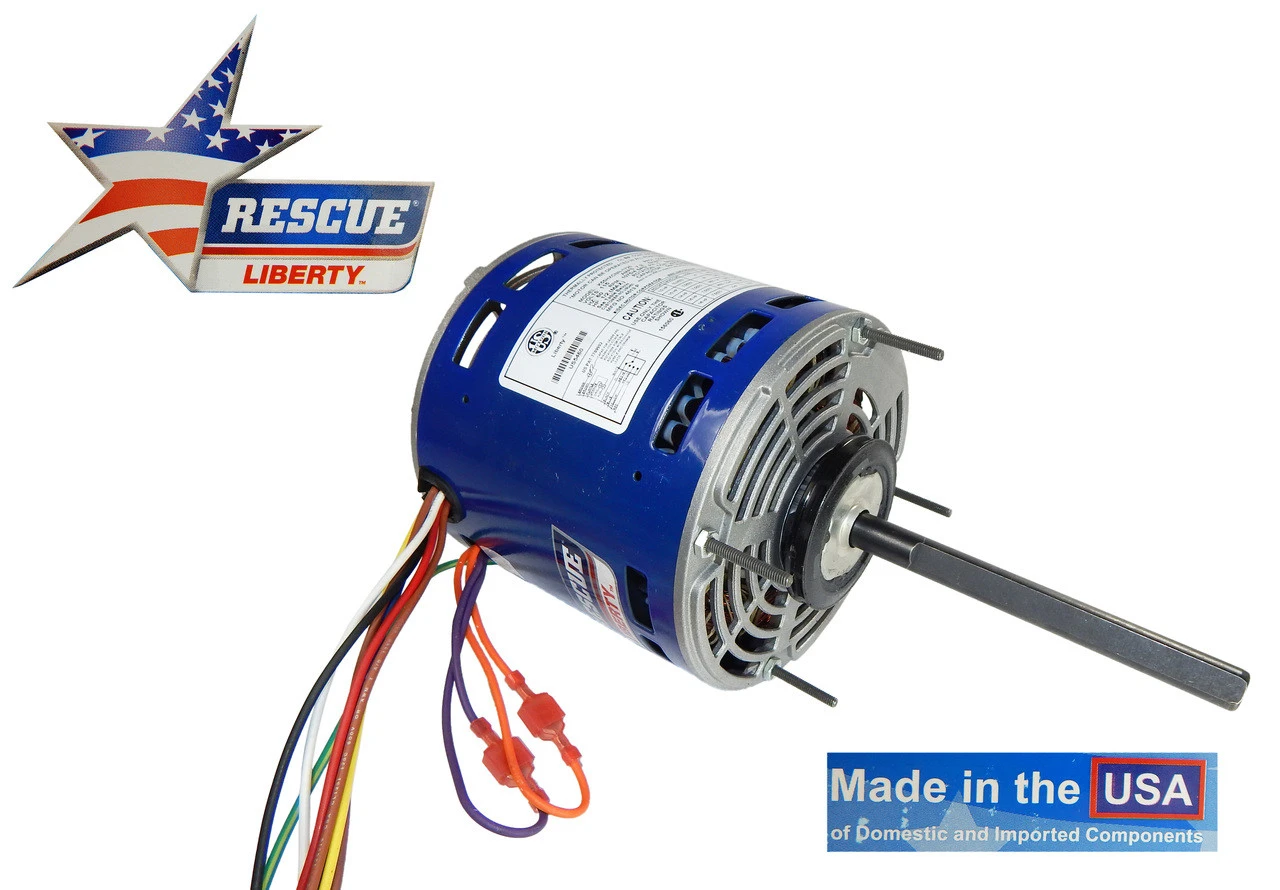

US5460 Nidec | 1/2-1/6 Hp 1075 RPM 4-Speed 5 5/8″ 115V Direct Drive Furnace Motor

• 1/2 – 1/6 hp 1075 RPM, 7.3 amps 115V 60hz.
• 4-Speed
• 5.6″ Diameter Motor
• Multifit motor will replace 1/6 thru 1/2 hp motor
• Includes 10 MFD 370V Capacitor for 1/2 hp
• Includes 7.5 MFD 370V Capacitor for 1/3-1/6 hp
• Motor Body Length 5.25″
• Shaft 1/2″ x 5 1/2″, Rotation Reversible
• 40º Ambient Temp
• 2.5″ Diameter Rings
• Sleeve Bearings
• 36″ Wire Leads
• Rheem Shell Holes
• MADE IN USA of domestic & imported components
• 1 Year Manufacture Warranty.

Standard Efficiency Continuous Duty – Air Over; Permanent Split Capacitor.  These motors will work in most “Belly Band Applications” meaning if the motor is mounted via a strap/clamp around the body of the motor or mounts with the motor “thru-bolts. Belly band brackets available: Torsion Flex Bracket (3-Prong) # 2MEY7, Torsion Flex Bracket (4-Prong) # FM554, Welded 3-Ring Bracket # 2MEV4.

Rescue Liberty Multi fit motor will replace 1/6, 1/4, 1/3, 1/2 hp direct drive blower motors.

Nidec RESCUE Motors Permanent Split Capacitor Furnace Blower Motor
