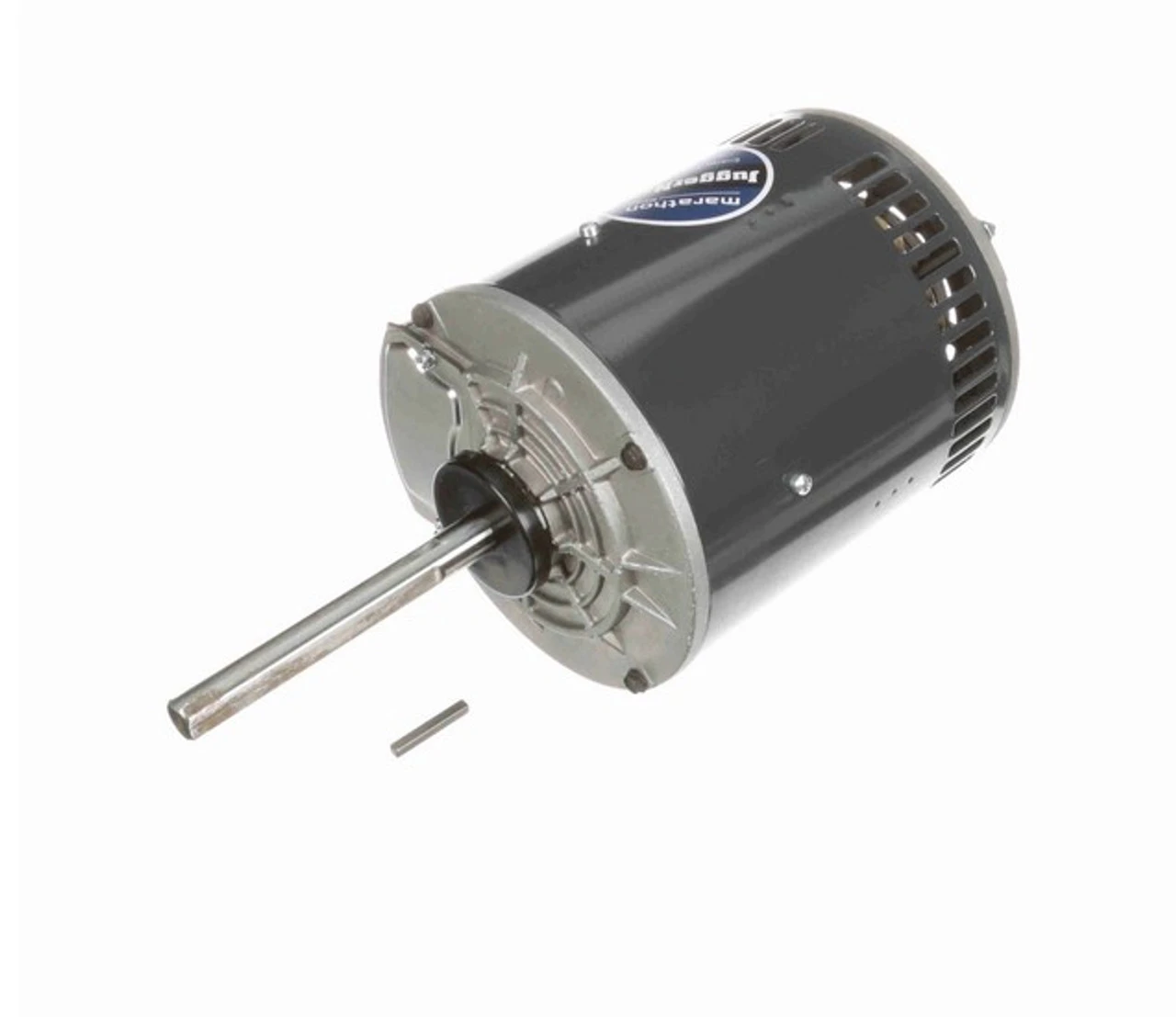

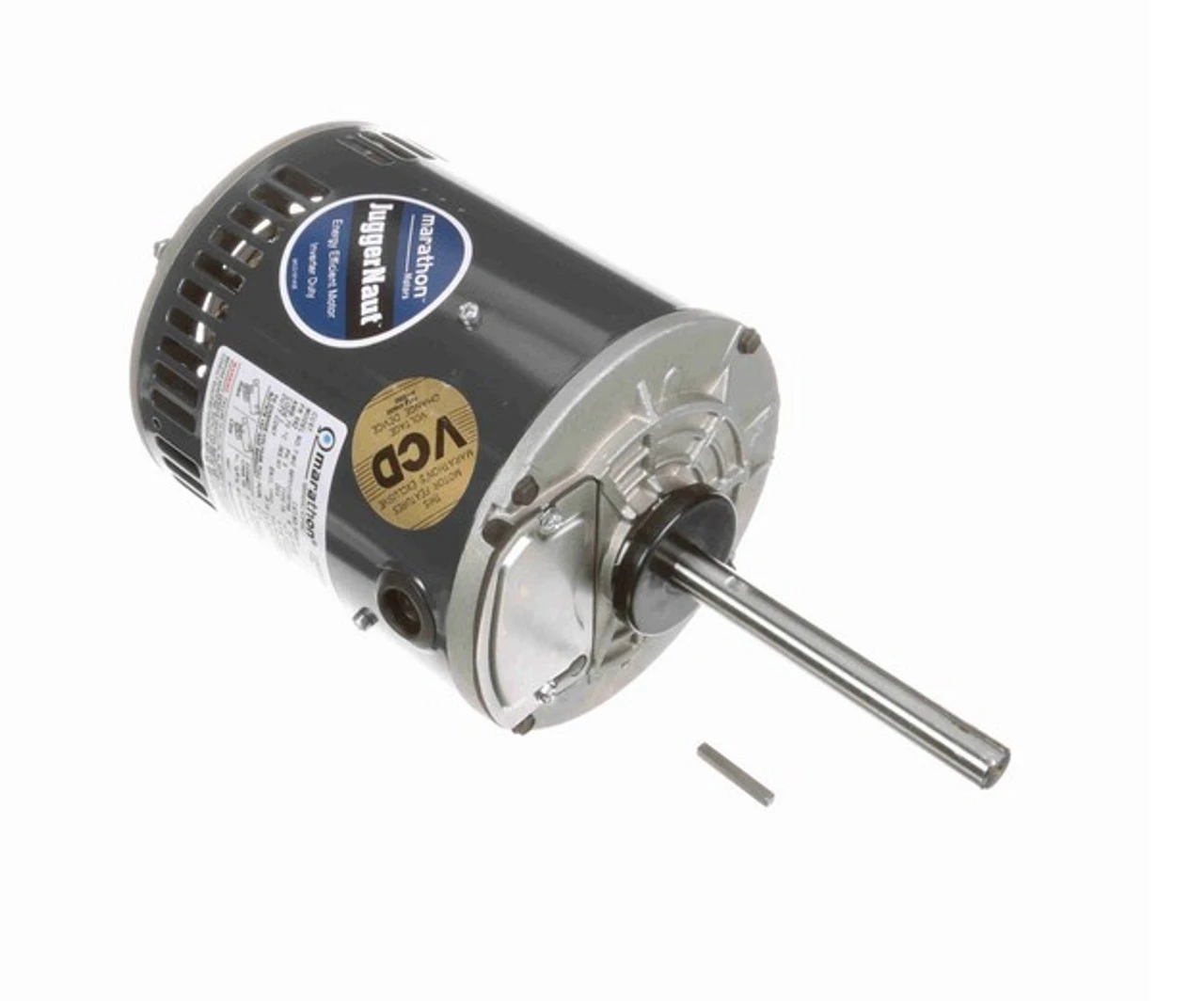

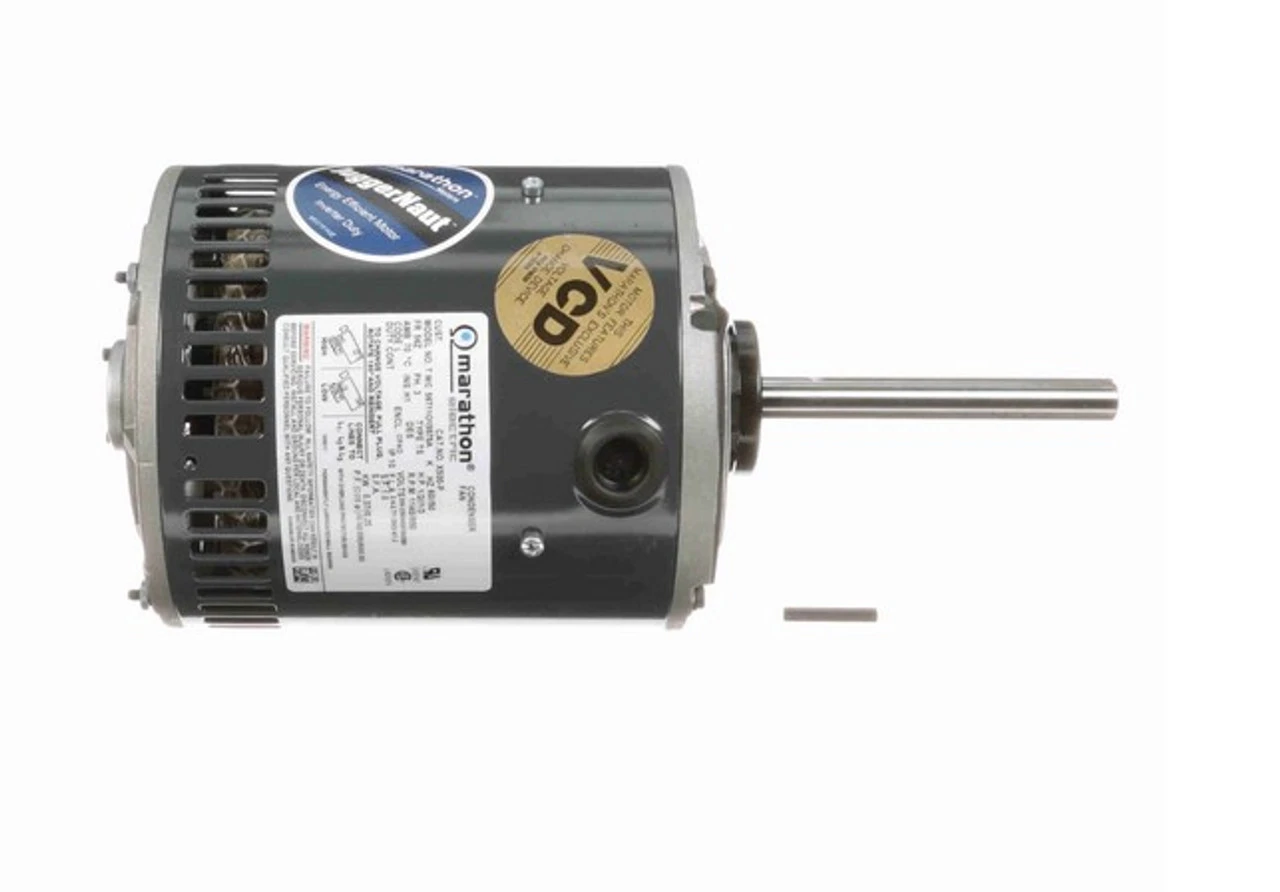

X500-P Marathon 1/2 Hp 3-phase 200-230/460V 1075 RPM OPAO 56Z Frame Condenser Fan Motor

• 1/2 hp 1075 RPM, 2.4-2.7/1.4 amps, 200-230/460 Volts 60 Hz, 3-Phase

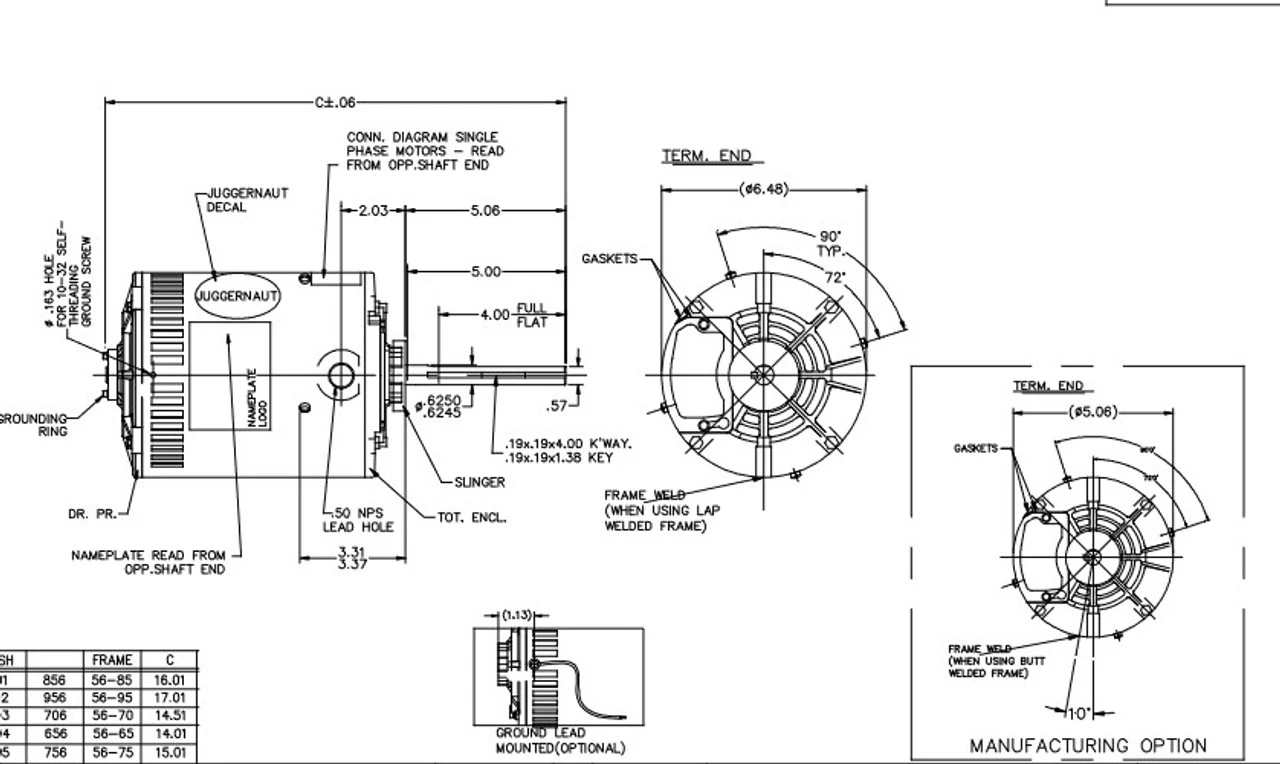

• NEMA 56Y Frame Keyed Shaft 5/8″ Diameter x 5″, Bearing Current Protection (BCP)
• Service Factor = 1.0, Thermal Protection = Automatic
• No Base, Reversible, Ball Bearings, Class H insulation
• 1 Year Manufacture Warranty

Condenser Fan Motors are used in air conditioning coolant condenser units usually found outdoors. Shaft may be vertical or horizontal. OPAO = Open Air-Over so motor must be in air-stream. 056T11O15575
