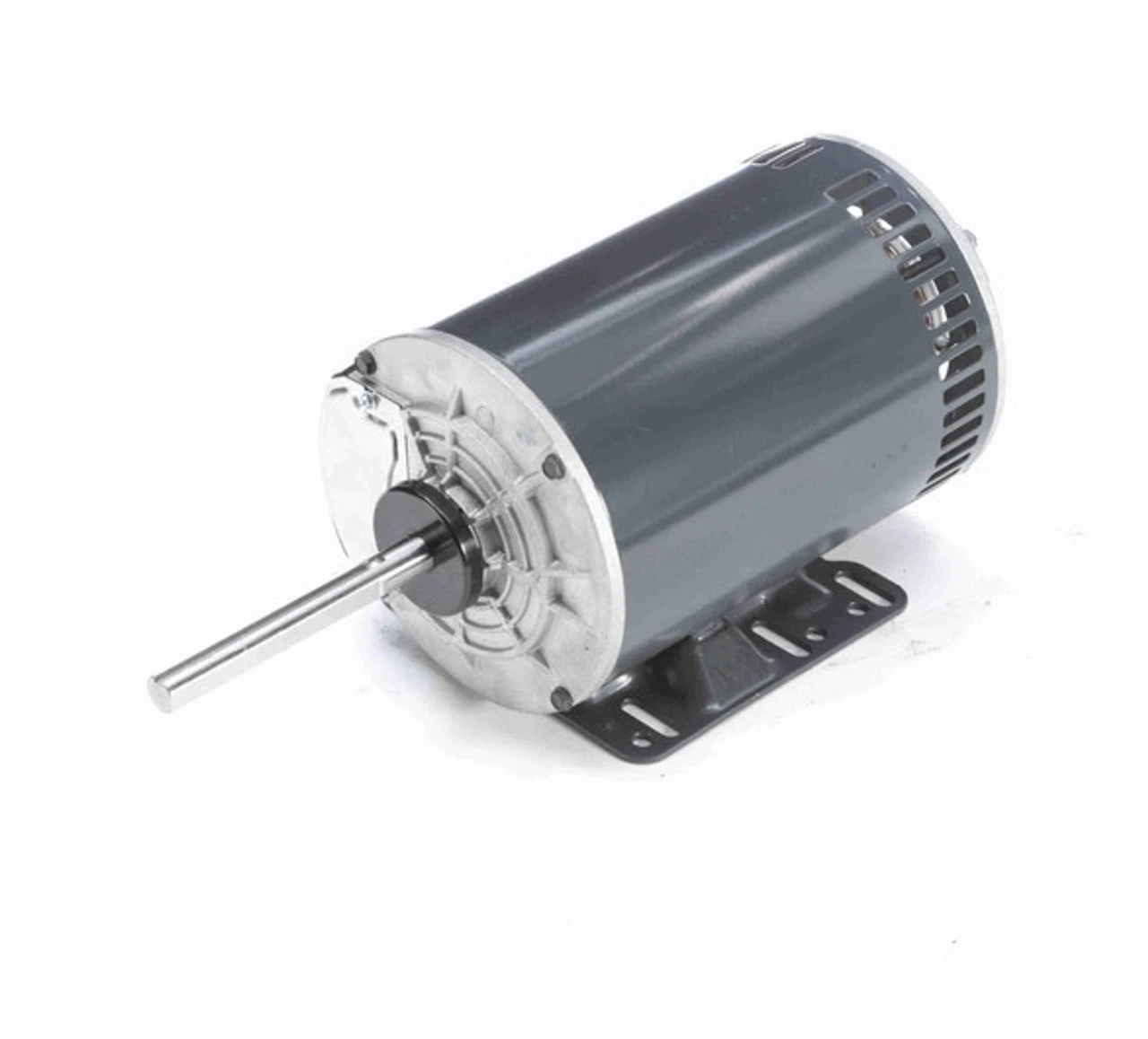

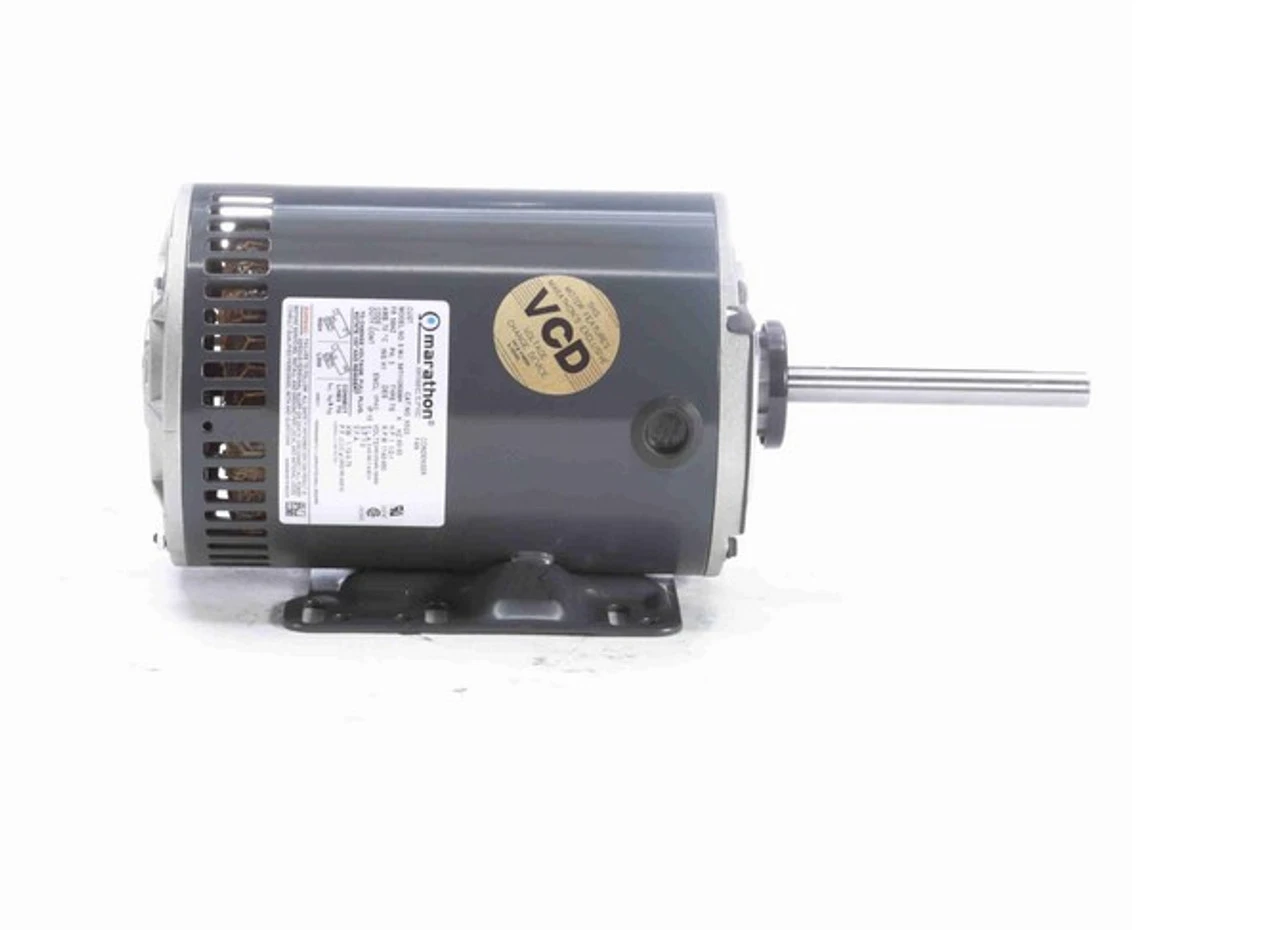

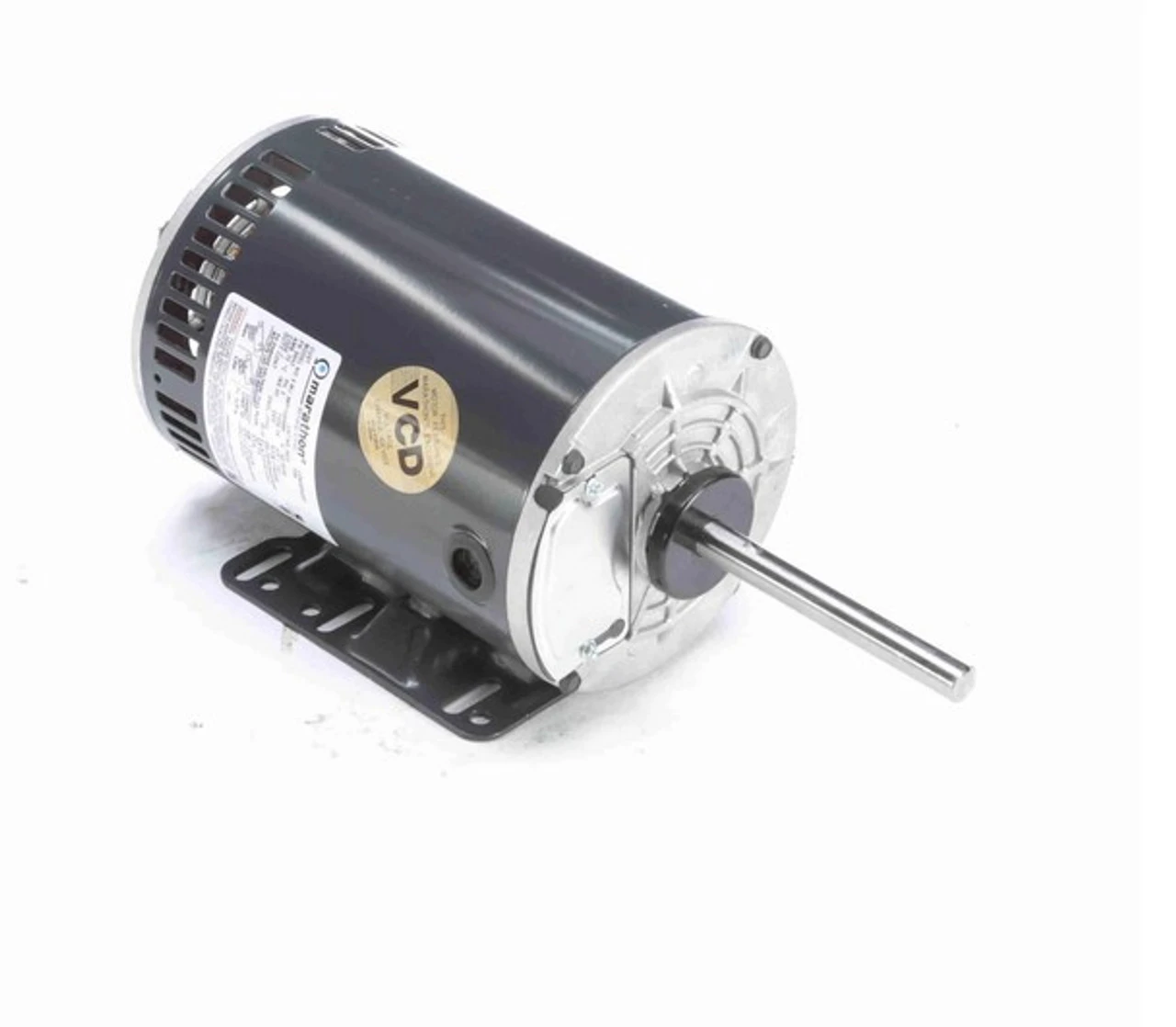

X523 Marathon 1 1/2 Hp 3-phase 208-230/460V 1140 RPM OPAO 56HZ Frame Condenser Fan Motor

X523 Marathon 1 1/2 Hp 3-phase 208-230/460V 1140 RPM OPAO 56HZ Frame Condenser Fan Motor - Image 2

X523 Marathon 1 1/2 Hp 3-phase 208-230/460V 1140 RPM OPAO 56HZ Frame Condenser Fan Motor - Image 3

X523 Marathon 1 1/2 Hp 3-phase 208-230/460V 1140 RPM OPAO 56HZ Frame Condenser Fan Motor - Image 4

X523 Marathon 1 1/2 Hp 3-phase 208-230/460V 1140 RPM OPAO 56HZ Frame Condenser Fan Motor

Original price was: $321.00.Current price is: $97.99.

SKU: ZWXLY 1698667175 Category: HVAC Motors & Draft Inducers Tag: Marathon

Have the best deals
The quality solution for all your needs.
Excellent customer service online in a timely manner
The best quality products, always.

Description
Reviews (0)

1 1/2 hp 1140 RPM, 5.4-5.4/2.7 amps, 208-230/460 Volts 60 Hz, 3-Phase

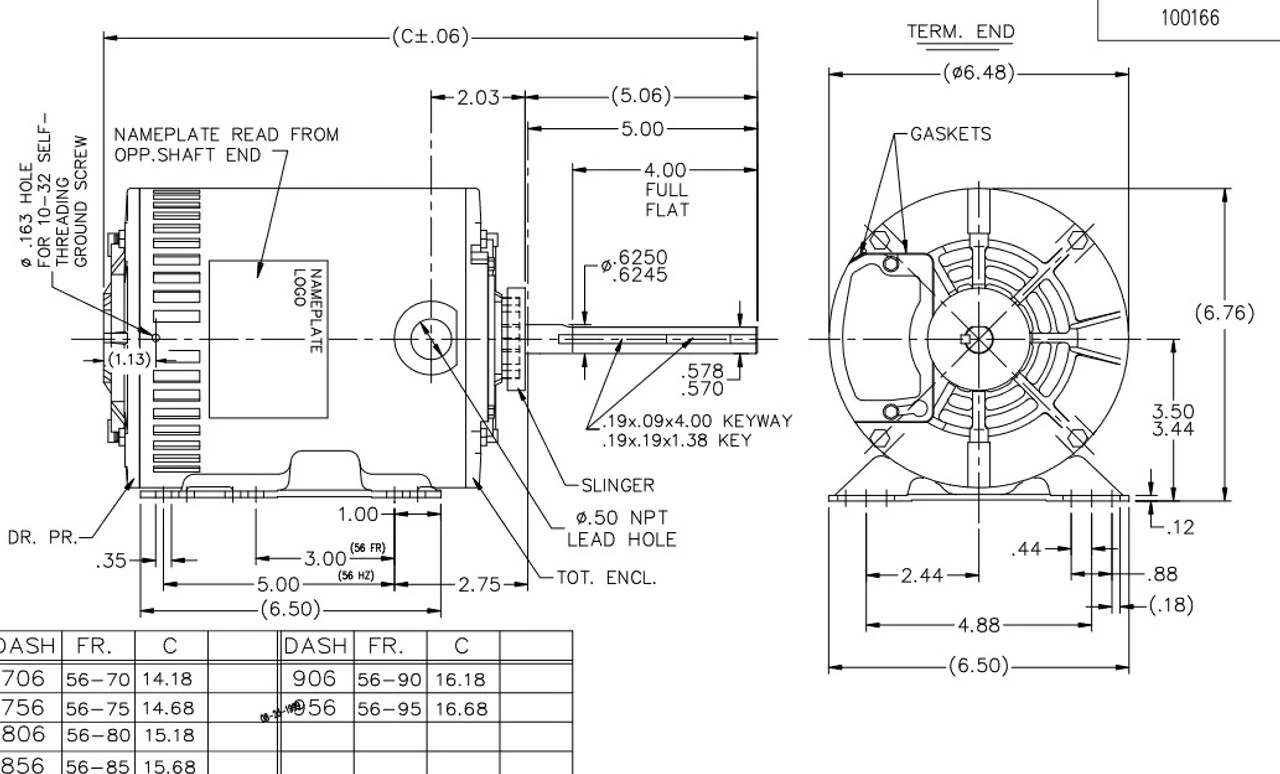

NEMA 56HZ Frame Keyed Shaft 5/8″ Diameter x 5″
Service Factor = 1.0, Thermal Protection = Automatic
Rigid Base, Reversible, Ball Bearings, Class H insulation
1 Year Manufacture Warranty

Condenser Fan Motors are used in air conditioning coolant condenser units usually found outdoors. Shaft may be vertical or horizontal. OPAO = Open Air-Over so motor must be in air-stream.

Marathon Model: 056T11O5306
Replaces Century H768
