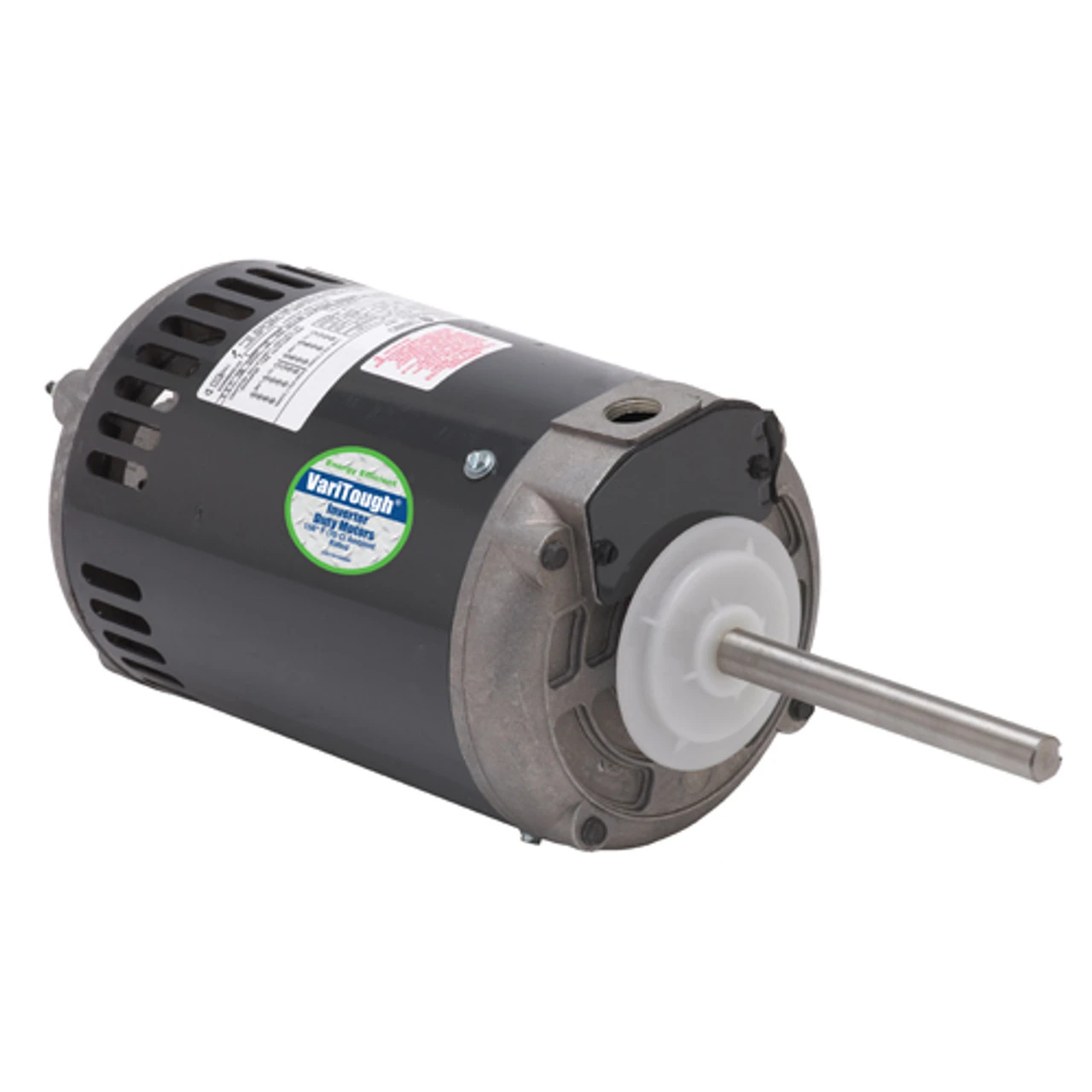

1830VG Nidec 1 Hp 825 RPM 208-230/460V 56YZ Frame (No Base) 1-Speed OAO 3-Phase Inverter Motor

1830VG Nidec 1 Hp 825 RPM 208-230/460V 56YZ Frame (No Base) 1-Speed OAO 3-Phase Inverter Motor - Image 2

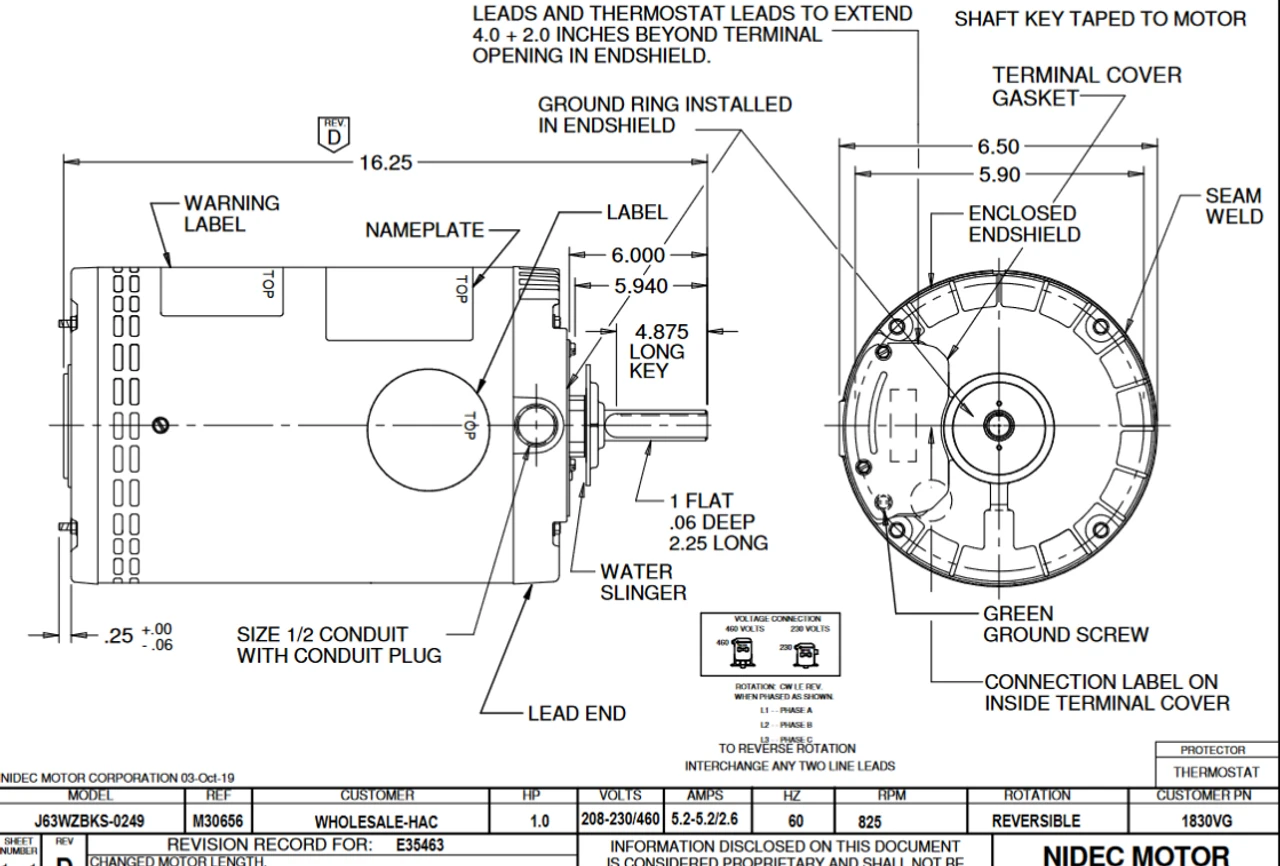

1830VG Nidec 1 Hp 825 RPM 208-230/460V 56YZ Frame (No Base) 1-Speed OAO 3-Phase Inverter Motor -Broan Shop 1830 line 81661.1676663241

1830VG Nidec 1 Hp 825 RPM 208-230/460V 56YZ Frame (No Base) 1-Speed OAO 3-Phase Inverter Motor

Original price was: $377.00.Current price is: $98.99.

SKU: ZWXLY 1698667514 Category: HVAC Motors & Draft Inducers Tag: Nidec

Have the best deals
The quality solution for all your needs.
Excellent customer service online in a timely manner
The best quality products, always.

Description
Reviews (0)

1 hp 825 RPM, 5.2-5.2/2.6 amps 208-230/460V Volts 60 Hz 3-Phase Motor
NEMA 56YZ Frame, Rolled Steel, Flat Shaft 5/8″ Diameter x 4 7/8″ long
Service Factor = 1.0, Overload Protection: Thermostat
Band Mount, Ball Bearings, Class F Insulation, Rev
1 Year Manufacture Warranty

Commercial Condenser Fan Motor for applications using a variable frequency drive. Wiring diagram on motor name plate. OAO = Open Air-Over, J063BKS0249015B
