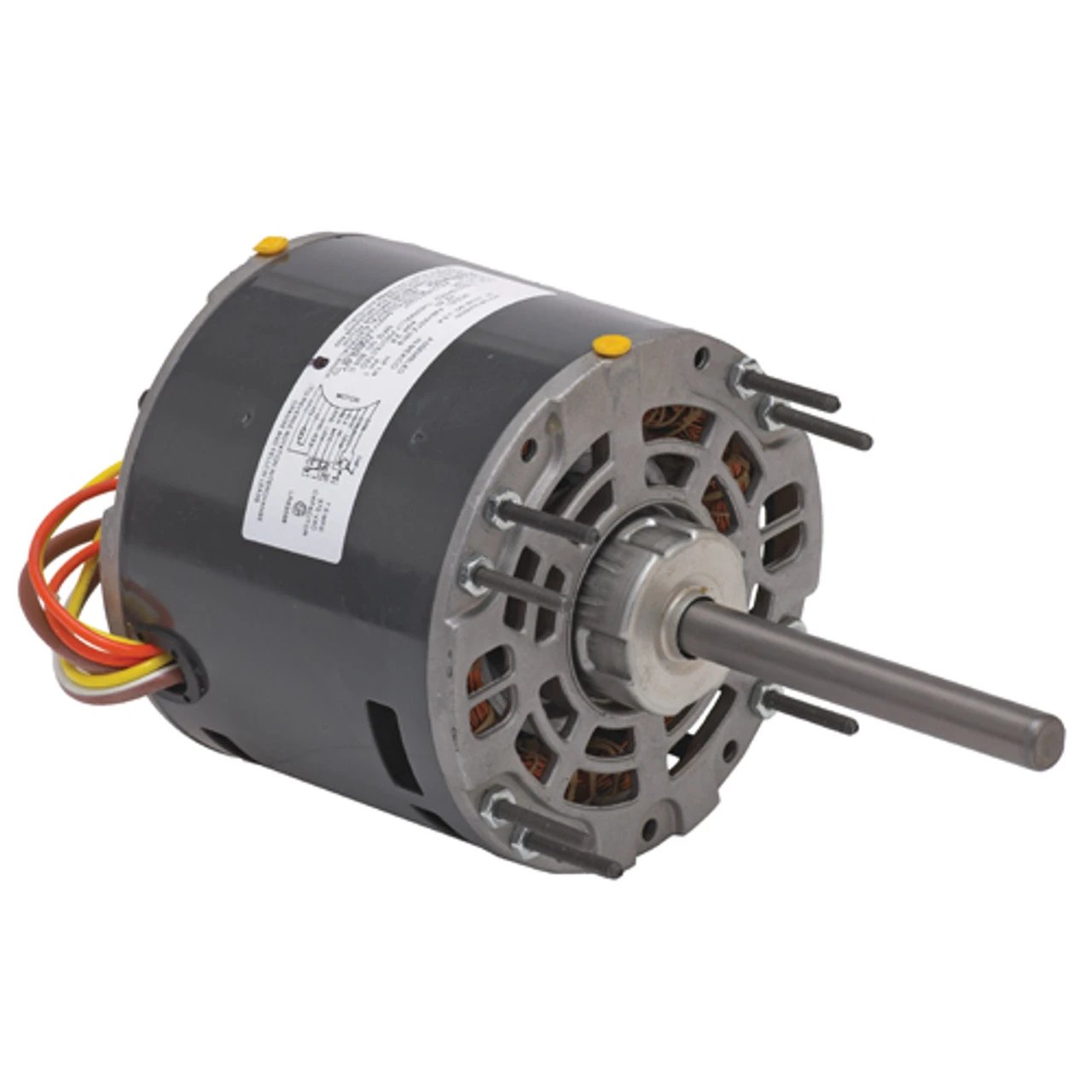

3183 Nidec 1/2 Hp 1625 RPM 230V 5.6" Dia. (No Base) 2-Speed OAO Fan Motor

3183 Nidec 1/2 Hp 1625 RPM 230V 5.6" Dia. (No Base) 2-Speed OAO Fan Motor - Image 2

3183 Nidec 1/2 Hp 1625 RPM 230V 5.6" Dia. (No Base) 2-Speed OAO Fan Motor -Broan Shop 3183 line 05490.1677517276

3183 Nidec 1/2 Hp 1625 RPM 230V 5.6″ Dia. (No Base) 2-Speed OAO Fan Motor

Original price was: $297.80.Current price is: $98.99.

SKU: ZWXLY 1698669466 Categories: Furnace Motors, HVAC Motors & Draft Inducers Tag: Nidec

Have the best deals
The quality solution for all your needs.
Excellent customer service online in a timely manner
The best quality products, always.

Description
Reviews (0)

1/2 hp 825 RPM (2 speed), 3.9 amps 230V Volts 60 Hz PSC Motor
5.6″ Dia. Frame, Rolled Steel, Flat Shaft 1/2″ Diameter x 6″
Service Factor = 1, Overload Protection: Auto
Hub and Stud Mount, Sleeve Bearings, Class B Insulation, Rev
1 Year Manufacture Warranty

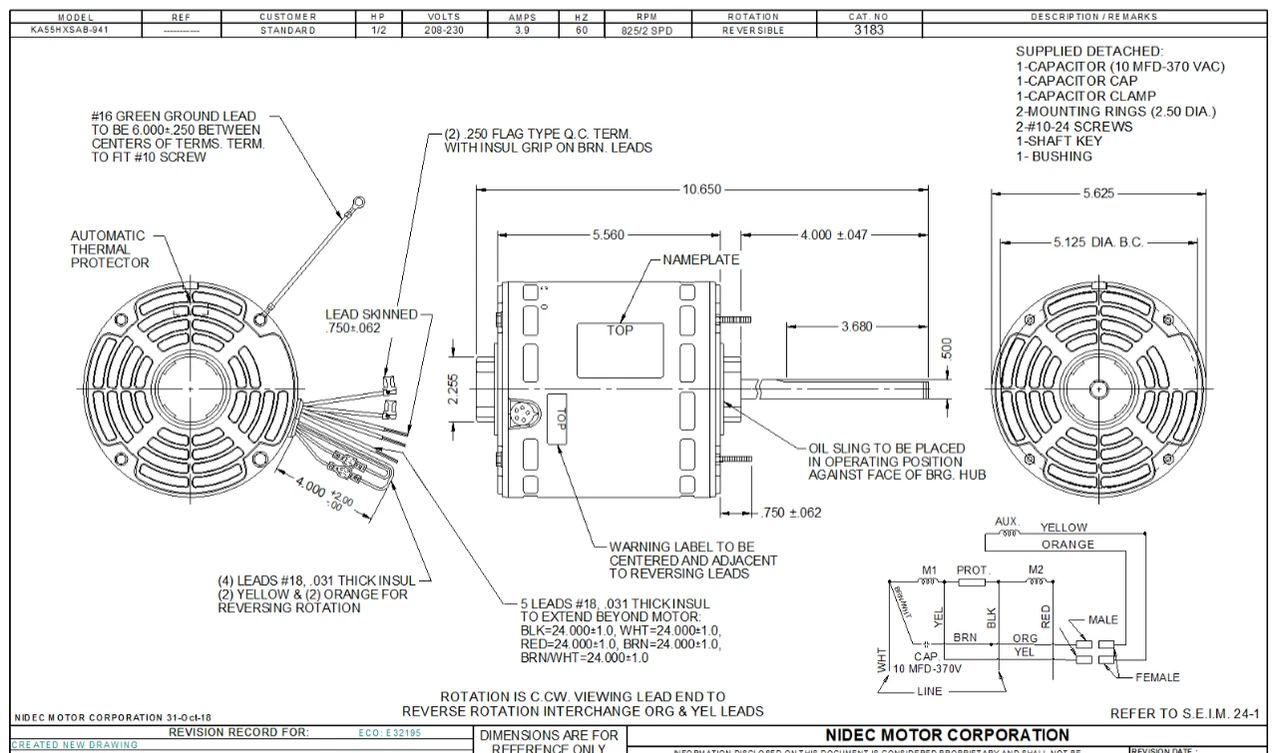

Direct Drive Fan Motor for central HVAC systems. Wiring diagram on motor name plate. OAO = Open Air Over, KA55SAB0941802B
