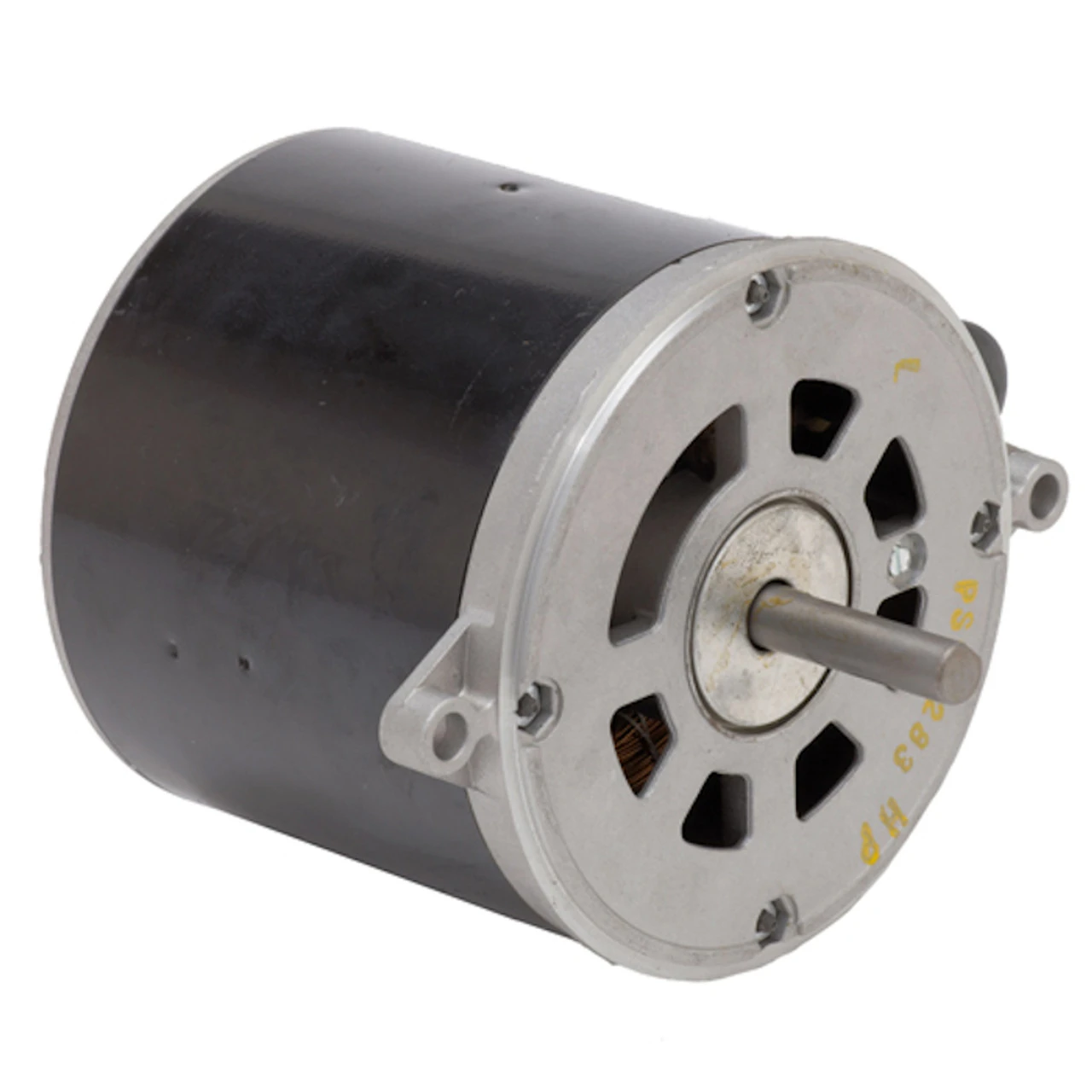

3580 Nidec | 1/3 Hp 1725 RPM 1-Speed 115V, 56N Oil Burner Motor

3580 Nidec | 1/3 Hp 1725 RPM 1-Speed 115V, 56N Oil Burner Motor - Image 2

3580 Nidec | 1/3 Hp 1725 RPM 1-Speed 115V, 56N Oil Burner Motor - Image 3

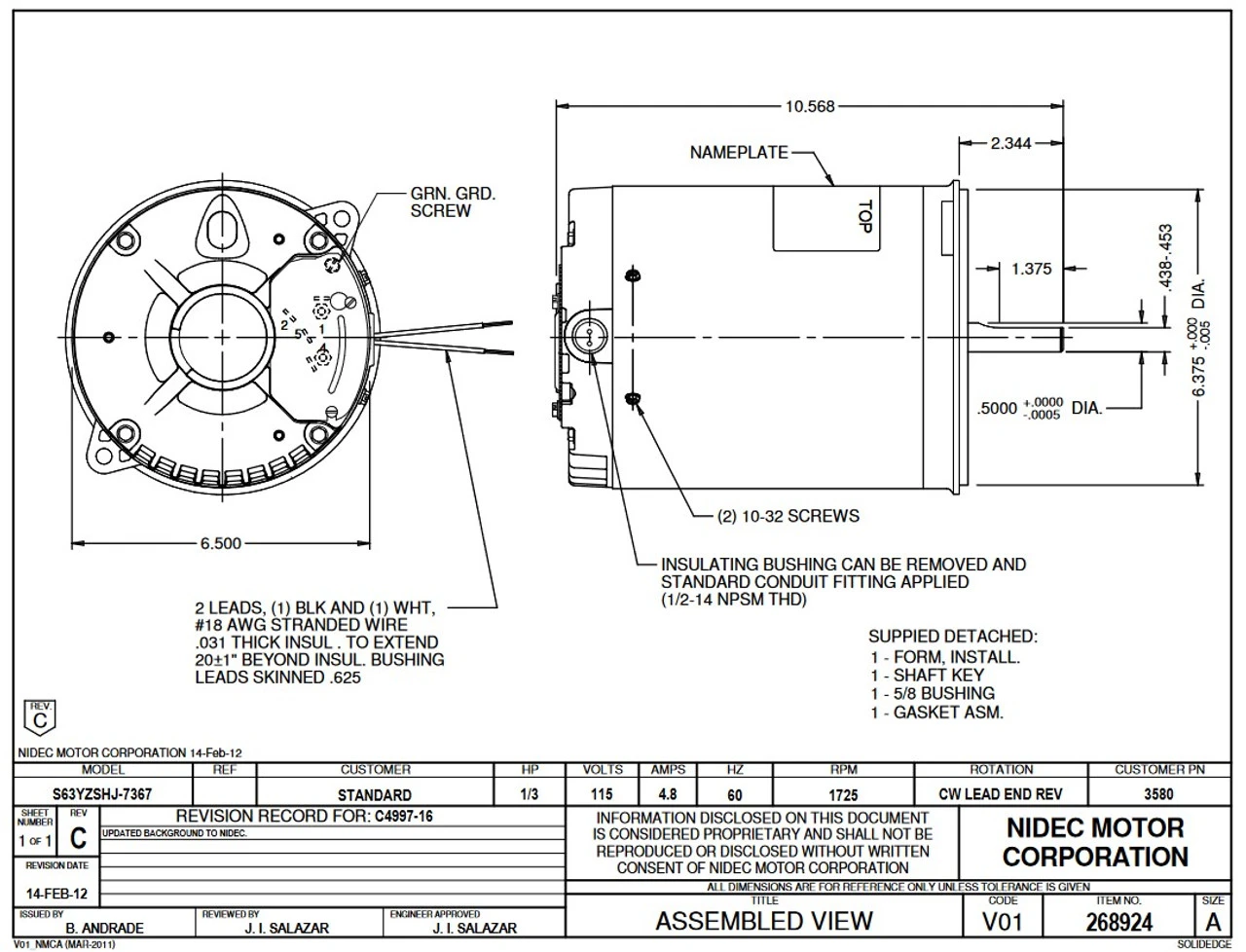

3580 Nidec | 1/3 Hp 1725 RPM 1-Speed 115V, 56N Oil Burner Motor -Broan Shop Nidec 3580 Line 15679.1570052128

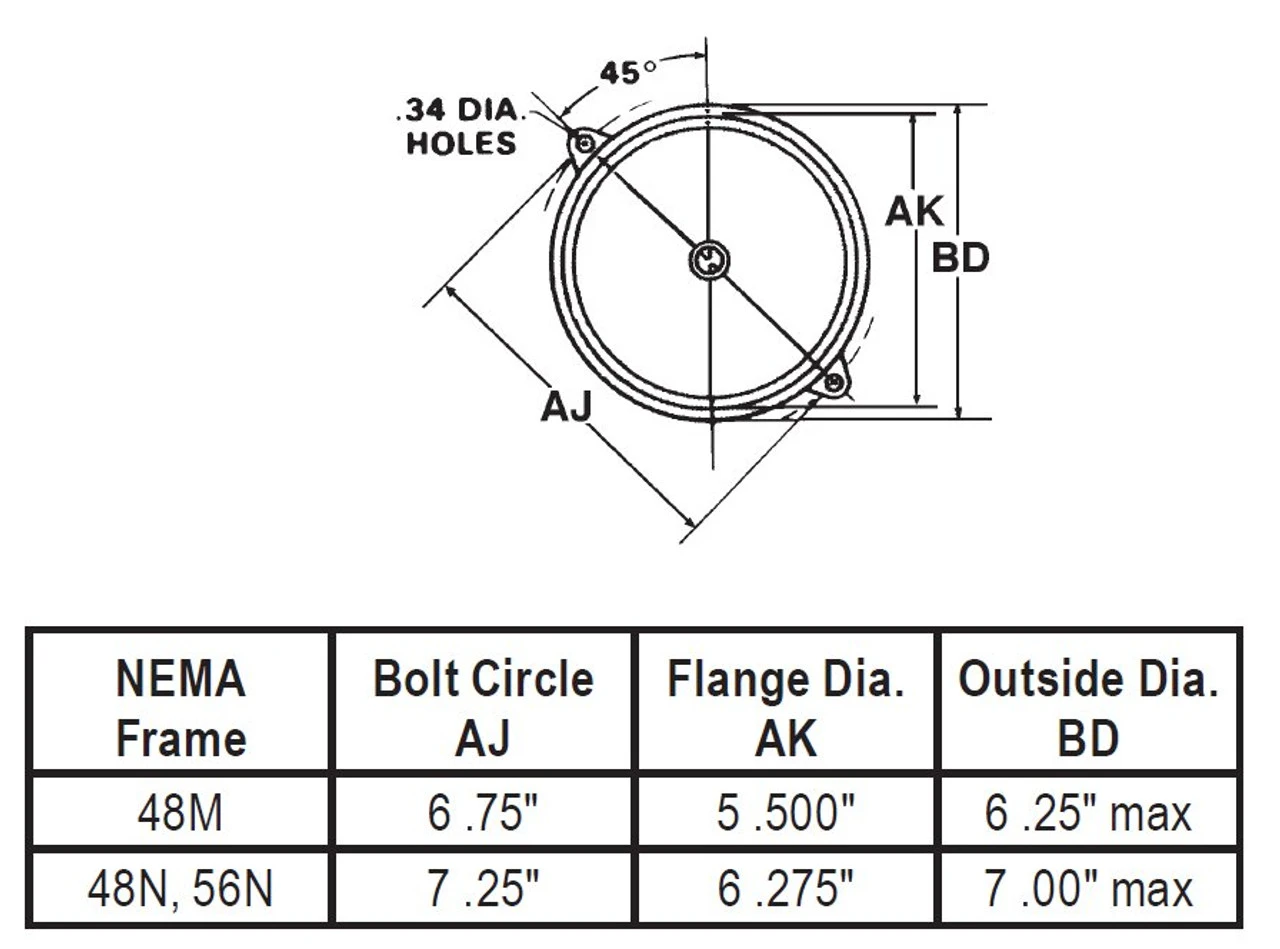

3580 Nidec | 1/3 Hp 1725 RPM 1-Speed 115V, 56N Oil Burner Motor -Broan Shop oil flange 51818.1570052137

3580 Nidec | 1/3 Hp 1725 RPM 1-Speed 115V, 56N Oil Burner Motor

Original price was: $360.80.Current price is: $95.99.

SKU: ZWXLY 1698669943 Categories: HVAC Motors & Draft Inducers, Oil Burner Motors Tag: Nidec

Have the best deals
The quality solution for all your needs.
Excellent customer service online in a timely manner
The best quality products, always.

Description
Reviews (0)

1/3 hp 1725 RPM 1-Speed 115V 4.8 amps
Shaft 1/2″ x 2.34″
Includes 5/8″ shaft bushing
Rotation: Reversible
56N Frame
6.5″ Diameter
Motor case length 8.22″
Ball Bearings
Flange Mount (2 screws 6-3/4″ apart)
20″ wire leads
1 Year mfg warranty

Split Phase Oil Burner Motor. Manual Overload Protection. Continuous Duty; Open Enclosure (Totally Enclosed Non-ventilated when mounted); Class B Insulation; 40C Ambient Temperature; 60 Hertz. S063SHJ7367724B.
