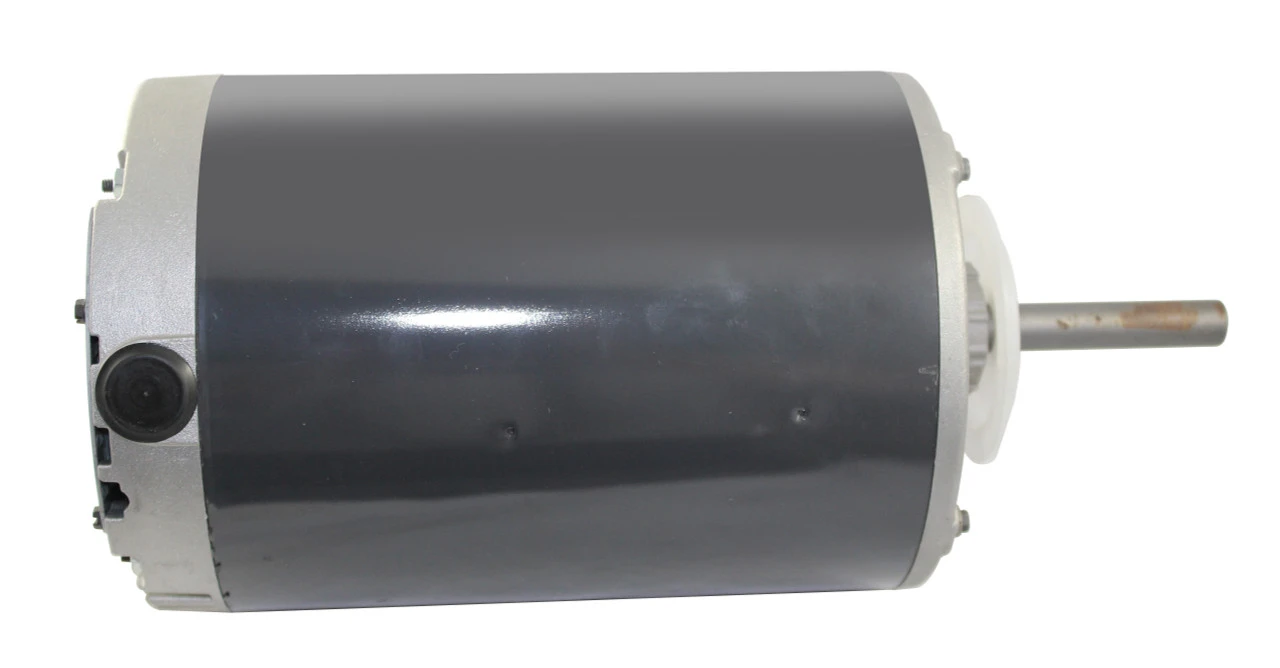

8058 Nidec | 1 Hp 1140 RPM, 200-230/460V; 6.5″ Condenser Motor
Original price was: $303.00.$96.99Current price is: $96.99.
- Have the best deals
- The quality solution for all your needs.
- Excellent customer service online in a timely manner
- The best quality products, always.

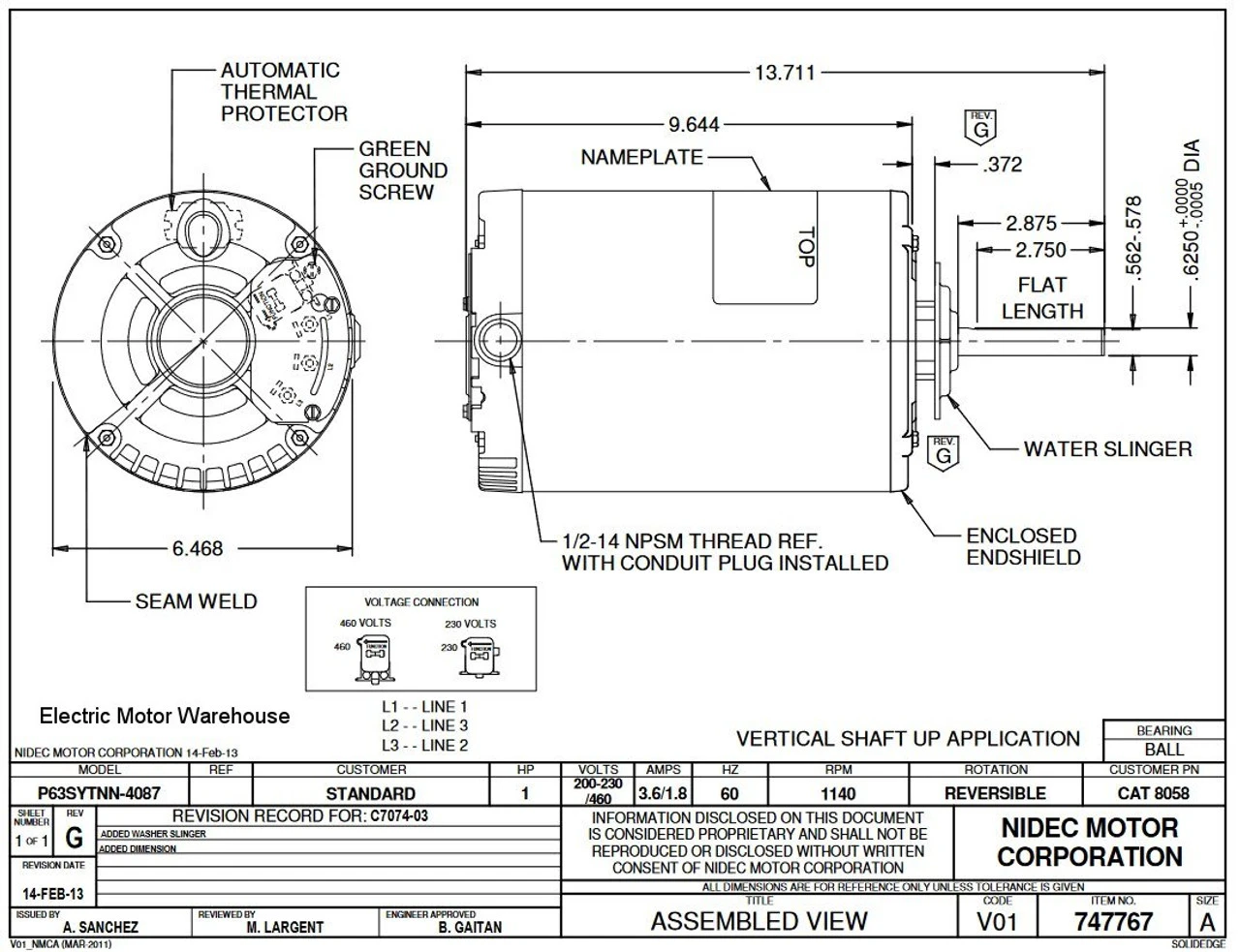

- 1 hp 1140 RPM 200-230V/460 3.6/1.8 amps
- Three Phase
- 1.0 Service Factor
- Shaft 2.875″ x 5/8″
- Rotation: Reversible
- 6.5″ Diameter
- Motor case length 9.64″
- Ball Bearings
- Vertical Shaft Up, belly band
- Open Air Over Case
- 1 Year mfg warranty
Three Phase Motor. Automatic Overload Protection. Water Slinger, Continuous Duty; Class B Insulation; 40C Ambient Temperature. Condenser fan motor.
Suggested after market replacement for Lennox P63SYTNN4087, 94G0001, P063TNN4087015B
