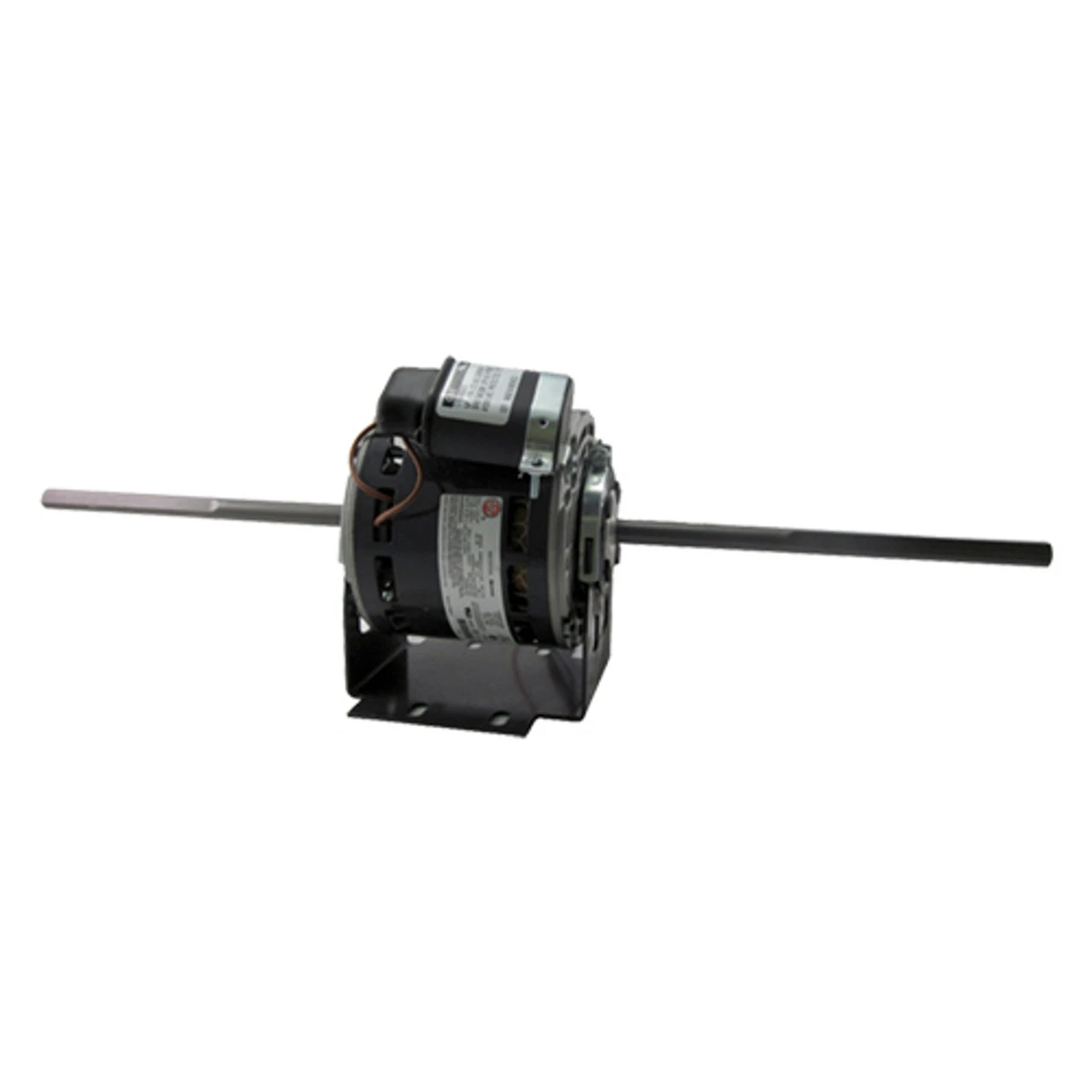

8525 Nidec 1/6 Hp 1625 RPM 115V 5.0" Dia. (Base) 4-Speed Open Fan Motor

8525 Nidec 1/6 Hp 1625 RPM 115V 5.0" Dia. (Base) 4-Speed Open Fan Motor - Image 2

8525 Nidec 1/6 Hp 1625 RPM 115V 5.0" Dia. (Base) 4-Speed Open Fan Motor -Broan Shop 8525 line 00219.1677092724

8525 Nidec 1/6 Hp 1625 RPM 115V 5.0″ Dia. (Base) 4-Speed Open Fan Motor

Original price was: $262.90.Current price is: $99.99.

SKU: ZWXLY 1698668131 Categories: Dual Shaft Motors, HVAC Motors & Draft Inducers Tag: Nidec

Have the best deals
The quality solution for all your needs.
Excellent customer service online in a timely manner
The best quality products, always.

Description
Reviews (0)

1/6 hp 1625 RPM, 4 speed 2.5 amps 115V Volts 60 Hz PSC Motor
5.0″ Dia. Frame, Rolled Steel, Flat Shaft 9 1/2″ x 1/2″ x 9 1/2″
Service Factor = 1, Overload Protection: Auto
Base Mount, Sleeve Bearings, Class B Insulation, CW Lead End
1 Year Manufacture Warranty

Direct Drive Fan Motor for central HVAC systems. Wiring diagram on motor name plate. Open, K048NCT0182011B
