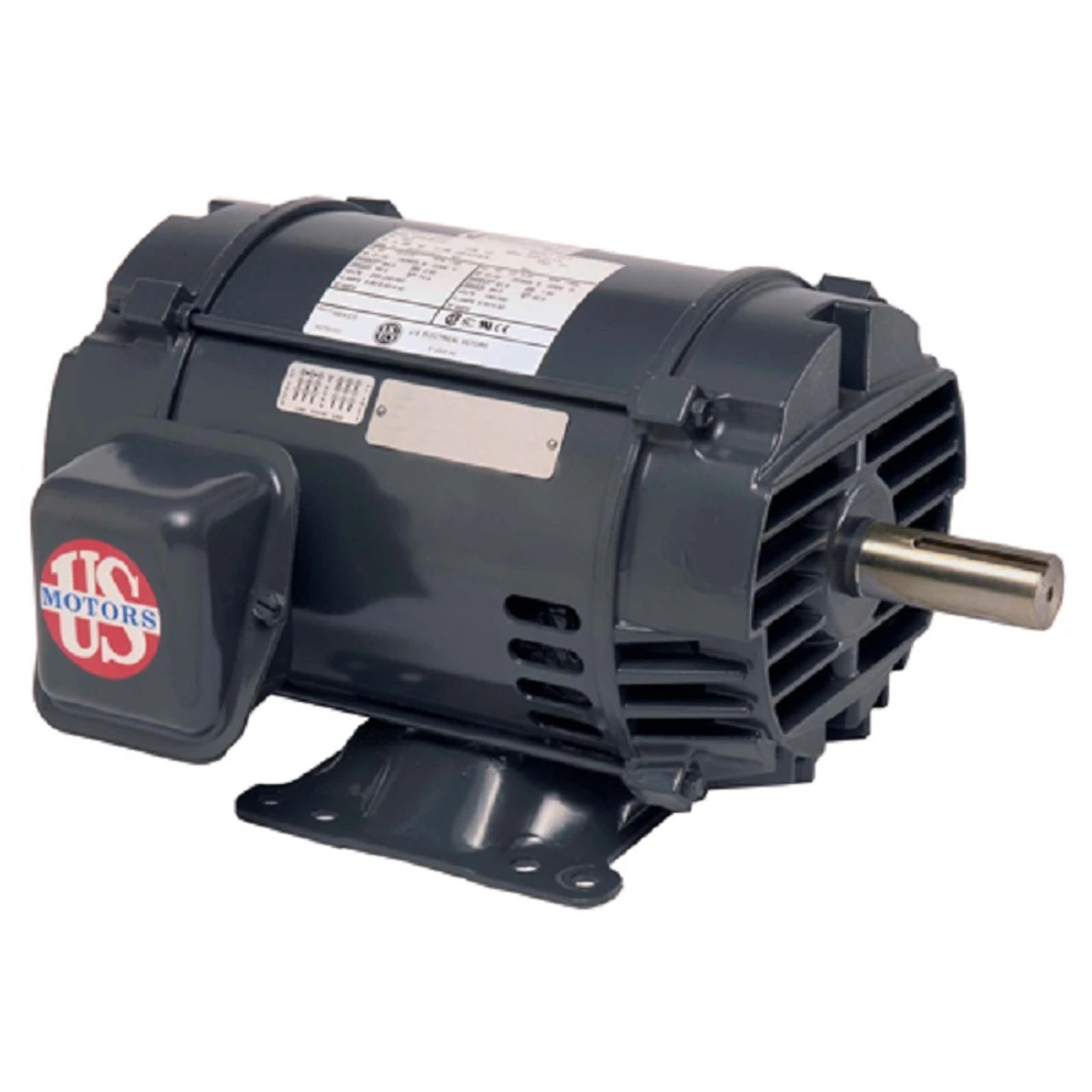

D15P2D Nidec | 15 Hp 1800 RPM 254T Frame 208-230/460V ODP Electric Motor Nidec
Original price was: $333.00.$95.99Current price is: $95.99.
- Have the best deals
- The quality solution for all your needs.
- Excellent customer service online in a timely manner
- The best quality products, always.
- 15 hp 1800 RPM, 37.0/18.3 amps 208-230/460V, 50/60hz. Three Phase

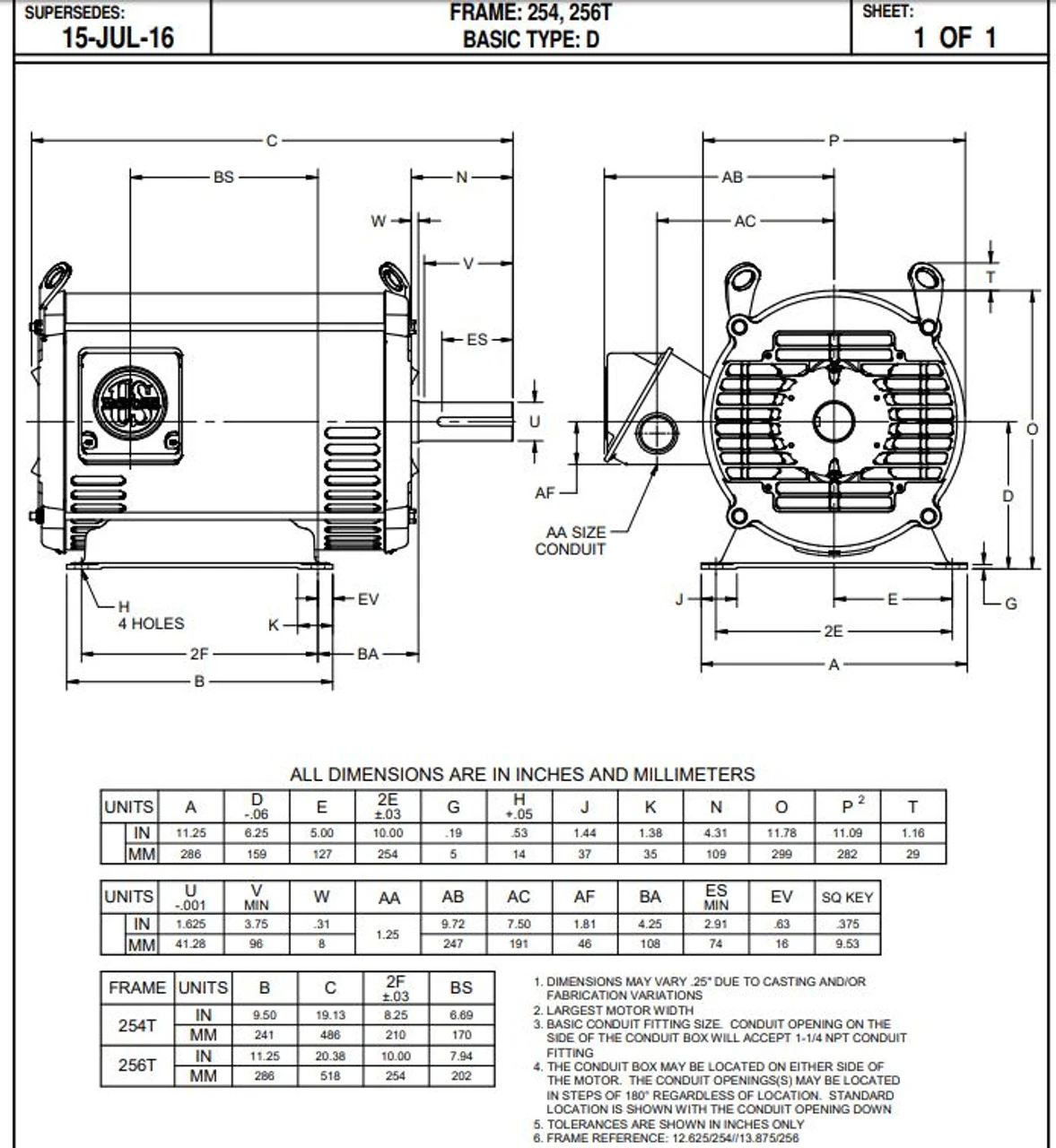

- NEMA 254T Frame Keyed Shaft 1-5/8″ Diameter x 4″
- ODP; Service Factor: 1.15, Overload protection = None
- Reversible, Rigid Base Mount, Ball Bearings, Class F Insulation
- “C” Dimension 19.1″
- 1 Year Manufacture Warranty
General purpose motor can be used for many applications requiring a three phase electric motor. Continuous Duty. Premium efficient. 40C Ambient Temp. Wiring diagram on motor name plate. ODP = Open Drip Proof
Model FB86, Dayton 263W19
